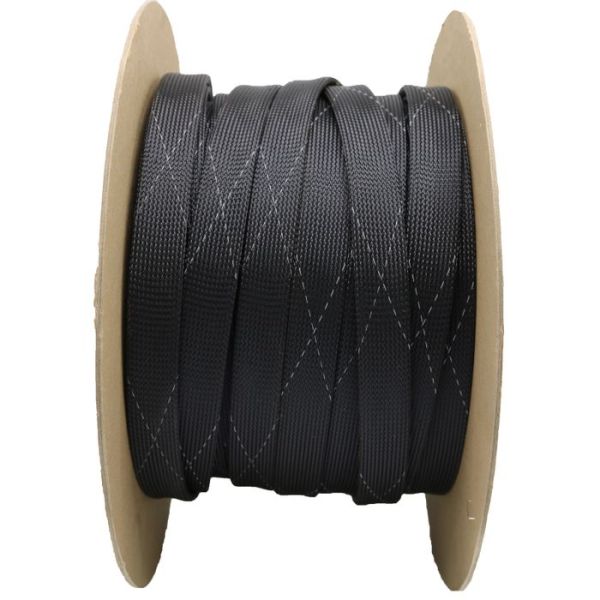

Non-Fray FR Flame Retardant PET Expandable Braided Cable Sleeving

Fray Resistant PET Braid

Features:
  • Identified by contrasting tracers in an X fashion
  • Can be cut with sharp scissors instead of a hot knife for fray resistant ends
  • High quality alternative to Bentley Harris Expando FR Plus®, Alpha GRP-120NF sleeving
  • Excellent cut through and abrasion resistance
  • Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
  • Melt temperature of 230°C (446°F)
  • Expands up to three times its resting diameter
  • ROHS compliant
  • Resists Gasoline, Engine Chemicals & Cleaning Solvents
  • Braided from 10 mil flame retardant polyethylene terepthalate (PET) monofilament yarns.
  • UL and CSA registered product, meets VW-1 and FT-1 flame tests
  • Passes FAR Part 25 flame test
  • Conforms to FMVSS 302 - Automotive Burn Test
  • Registered in the NASA database for low outgassing (under CS Technical as manufacturer)
Diameter Part NumberExpansion minExpansion Max Buy
1/8" BSNFFR01253/32"1/4"
1000 FT/SPOOL$247.50
100 FT/SPOOL$31.90
1/4" BSNFFR0251/8"3/8"
1000 FT/SPOOL$302.50
100 FT/SPOOL$38.50
3/8" BSNFFR03753/16"5/8"
500 FT/SPOOL$226.88
100 FT/SPOOL$58.30
1/2" BSNFFR0501/4"3/4"
250 FT/SPOOL$123.75
100 FT/SPOOL$64.90
50 FT/SPOOL$44.00
3/4" BSNFFR0751/2"1 1/4"
250 FT/SPOOL$161.70
100 FT/SPOOL$83.60
50 FT/SPOOL$49.50
1" BSNFFR1003/4"1 1/2"
250 FT/SPOOL$182.44
100 FT/SPOOL$94.60
50 FT/SPOOL$55.00
