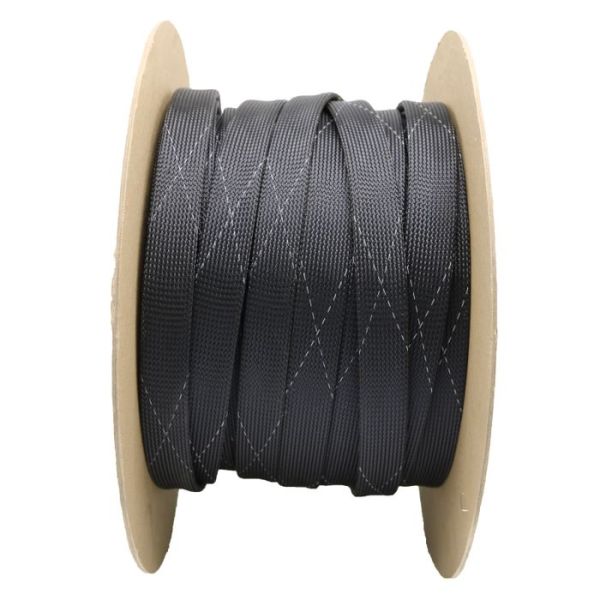

Bentley Harris Expando FR

Bentley Harris Expando FR

Features:

  • Expando FR Plus contains a patented fray resistant treatment.
  • Self Extinguising - please click here to see the definition of LOI, and how it relates to the burning of materials
  • Resists Gasoline, Engine Chemicals & Cleaning Solvents
  • FAR Part 25 flame rated
Diameter Feet Part NumberExpansion minExpansion Max Buy
1/8" 2000 FT/SPOOL BSBHFR-01253/32"1/4"
$567.00 BSBHFR-0125
1/4" 1000 FT/SPOOL BSBHFR-0251/8"3/8"
$446.00 BSBHFR-025
3/8" 500 FT/SPOOL BSBHFR-03753/16"5/8"
$352.00 BSBHFR-0375
3/4" 500 FT/SPOOL BSBHFR-0751/2"1 1/4"
$555.00 BSBHFR-075
1-1/4" 250 FT/SPOOL BSBHFR-1253/4"1 3/4"
$402.00 BSBHFR-125
1-3/4" 250 FT/SPOOL BSBHFR-1751"2 3/4"
$575.00 BSBHFR-175
2" 250 FT/SPOOL BSBHFR-2001 1/4"3"
$725.00 BSBHFR-200
2-1/2" 200 FT/SPOOL BSBHFR-2501 1/2"4 1/2"
$955.00 BSBHFR-250

Bentley Harris Expando FR

Features:

  • Expando FR Plus contains a patented fray resistant treatment.
  • Self Extinguishing - Normal atmospheric air (i.e. the air we breathe) is approximately 21% Oxygen, so a material with an LOI of less than 21% would burn easily in air. That being said, a material with LOI of greater than 21% but less than 28% would be considered "slow burning". A material with LOI of greater than 28% would be considered "self-extinguising". A self-extinguishing material is one that would stop burning after the removal of the fire or ignition source.
  • VW-1 flame retardant
  • Resists Gasoline, Engine Chemicals & Cleaning Solvents
  • FAR Part 25 flame rated

Expando FR

A flame retardant version of the Expando PT. Expando FR passes the rigorous UL VW-1 and Federal Aviation Regulation (FAR) part 25 flame tests.Flame retardant PET expandable braided sleeving also available in a private label version.

SKUProduct NameManufacturer Part Number (MPN/GTIN)MPN 2

BSBHFR-0125-BW

BSBHFR-0125-WB

1/8" Bentley Harris Expando FR (2000 ft/spool) - Black with White Tracers

1/8" Bentley Harris Expando FR (2000 ft/spool) - White with Black Tracers

5021000332

5021000323

5021000332S

5021000323S

BSBHFR-025-BW

BSBHFR-025-WB

1/4" Bentley Harris Expando FR (1000 ft/spool) - Black with White Tracers

1/4" Bentley Harris Expando FR (1000 ft/spool) - White with Black Tracers

5021000632

5021000623

5021000632S

5021000623S

BSBHFR-0375-BW

BSBHFR-0375-WB

3/8" Bentley Harris Expando FR (500 ft/spool) - Black with White Tracers

3/8" Bentley Harris Expando FR (500 ft/spool) - White with Black Tracers

5021001032

5021001023

5021001032S

5021001023S

BSBHFR-050-BW

BSBHFR-050-WB

1/2" Bentley Harris Expando FR (500 ft/spool) - Black with White Tracers

1/2" Bentley Harris Expando FR (500 ft/spool) - White with Black Tracers

5021001332

5021001323

5021001332S

5021001323S

BSBHFR-075-BW

BSBHFR-075-WB

3/4" Bentley Harris Expando FR (500 ft/spool) - Black with White Tracers

3/4" Bentley Harris Expando FR (500 ft/spool) - White with Black Tracers

5021001932

5021001923

5021001932S

5021001923S

BSBHFR-125-BW

BSBHFR-125-WB

1-1/4" Bentley Harris Expando FR (250 ft/spool) - Black with White Tracers

1-1/4" Bentley Harris Expando FR (250 ft/spool) - White with Black Tracers

5021003232

5021003223

5021003232S

5021003223S

BSBHFR-175-BW

BSBHFR-175-WB

1-3/4" Bentley Harris Expando FR (250 ft/spool) - Black with White Tracers

1-3/4" Bentley Harris Expando FR (250 ft/spool) - White with Black Tracers

5021004532

5021004523

5021004532S

5021004523S

BSBHFR-200-BW

BSBHFR-200-WB

2" Bentley Harris Expando FR (250 ft/spool) - Black with White Tracers

2" Bentley Harris Expando FR (250 ft/spool) - White with Black Tracers

5021005132

5021005123

5021005132S

5021005123S

BSBHFR-250-BW

BSBHFR-250-WB

2-1/2" Bentley Harris Expando FR (200 ft/spool) - Black with White Tracers

2-1/2" Bentley Harris Expando FR (200 ft/spool) - White with Black Tracers

5021006432

5021005123

5021006432S

5021005123S
