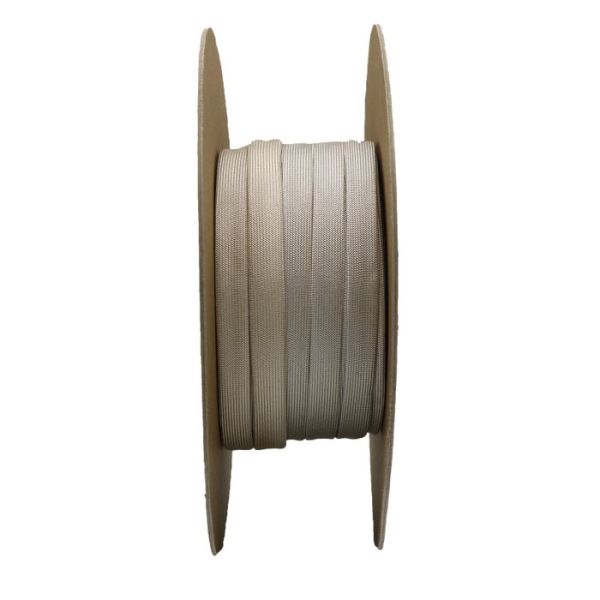

Heavy Wall Heat Treated Fiberglass Braided Cable Sleeving

Heavy Wall Heat Treated Fiberglass Sleeving BuyHeatShrink®

Features:

Insulation of wires (up to 600V insulation)
Irregular shapes (e.g. coil insulation on rotating equipment)
Thermal protection of insulated wires (e.g. fiberglass can thermally protect PVC jacketed wire that rests very close to a heat source)
Heat treated to removed starches, oils and other impurities that naturally occur in glass.
Thermal Characteristics - UL Thermal Class S&C (240°C+) (this is the maximum thermal class UL and NEMA will allow for fiberglass products) - Maintains 1/2 its strength at temperatures up to 750°C. Some degree of protection up to the melting point of glass (1400°C).
Flame Resistance - Passes UL 1441 (VW-1). Will not burn. NEMA TF-2 flame retardant
Available in NEMA sizes #24 (AWG) to 1".
Standard wall thickness is 0.015" (1/64"). Heavy wall thickness is 0.030" (1/32")
Dielectric Grade C-3: Standard wall provides up to 300V space factor insulation (although no dielectric breakdown is guaranteed). Heavy wall provides 600V (also, no dielectric is guaranteed).
High quality equivalent to: Alpha Wire PIF-240, Ben-Har ST1250 (heavy wall), Varglas Non-Fray Type H, Hilec 220C (heavy wall)

Size	Feet	Manufacturer Part Number	ID	Buy
18 AWG	250 FT/SPOOL	BSFGH-018G	0.042	$52.00 BSFGH-018G
16 AWG	250 FT/SPOOL	BSFGH-016G	0.053	$54.00 BSFGH-016G
14 AWG	250 FT/SPOOL	BSFGH-014G	0.066	$57.00 BSFGH-014G
13 AWG	250 FT/SPOOL	BSFGH-013G	0.076	$31.00 BSFGH-013G
12 AWG	250 FT/SPOOL	BSFGH-012G	0.085	$31.00 BSFGH-012G
11 AWG	250 FT/SPOOL	BSFGH-011G	0.095	$33.00 BSFGH-011G
10 AWG	250 FT/SPOOL	BSFGH-010G	0.106	$33.00 BSFGH-010G
9 AWG	250 FT/SPOOL	BSFGH-009G	0.118	$36.00 BSFGH-009G
8 AWG	250 FT/SPOOL	BSFGH-008G	0.133	$38.00 BSFGH-008G
7 AWG	250 FT/SPOOL	BSFGH-007G	0.148	$42.00 BSFGH-007G
6 AWG	250 FT/SPOOL	BSFGH-006G	0.166	$46.00 BSFGH-006G
5 AWG	250 FT/SPOOL	BSFGH-005G	0.186	$50.00 BSFGH-005G
4 AWG	250 FT/SPOOL	BSFGH-004G	0.208	$55.00 BSFGH-004G
3 AWG	250 FT/SPOOL	BSFGH-003G	0.234	$60.00 BSFGH-003G
2 AWG	250 FT/SPOOL	BSFGH-002G	0.263	$69.00 BSFGH-002G
1 AWG	250 FT/SPOOL	BSFGH-001G	0.294	$31.00 BSFGH-001G
0 AWG	250 FT/SPOOL	BSFGH-000G	0.330	$37.00 BSFGH-000G
3/8"	100 FT/SPOOL	BSFGH-0375	0.387	$54.00 BSFGH-0375
7/16"	100 FT/SPOOL	BSFGH-0438	0.450	$74.00 BSFGH-0438
1/2"	100 FT/SPOOL	BSFGH-050G	0.512	$98.00 BSFGH-050G

Details

Our high quality heavy wall heat treated fiberglass braided sleeves are equivalent to Alpha Wire PIF-240, Ben Har ST 1250, Hilec 220C.Heavy wall treated fiberglass sleeving finds its common use in high-temperature appliances such as ovens, stoves, coffee makers, toasters, and other small heating units. Our heavy fiberglass sleeving holds a good amount of flexibility, and expandability, and is made from highly flexible continuous filament E Glass. The heat treatment removes starches, oils and other impurities that naturally occur in glass. Thermal Characteristics - UL Thermal Class S&C (240°C+) (this is the maximum thermal class UL and NEMA will allow for fiberglass products) - Maintains 1/2 its strength at temperatures up to 750°C. Some degree of protection up to the melting point of glass (1400°C). Flame Resistance Passes UL 1441 (VW-1). Will not burn. NEMA TF-2 flame retardant. Available in NEMA sizes #24 (AWG) to 1". Standard wall thickness is 0.015" (1/64").
