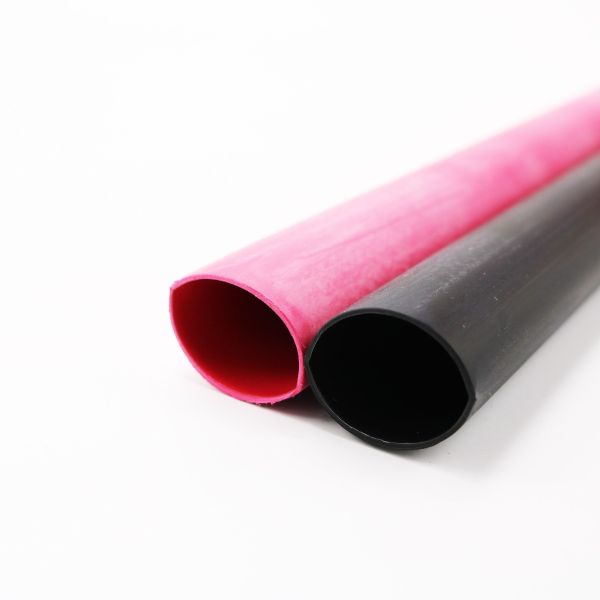

3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing | 4 Ft Length

BuyHeatShrink™ 3:1 Heavy Wall Adhesive Lined Heat Shrink Tubing

Features:
  • 3:1 Shrink Ratio with melt adhesive inner lining (shrinks to 1/3 its original diameter)
  • Longitudinal Shrinkage: up to 10%
  • Meets requirements of AMS-DTL-23053/15 (formerly MIL-I-23053/15), Class 1
  • UL 224 VW-1 flame retardant (jacket only)
  • UL 486D rated for direct burial
  • Dielectric Strength 500 V/mil (500 x Jacket Wall thickness x 1000) (for example, a typical tube thickness after shrinking will be about 0.10. Using these caculations, the rating will be about 50,000V, or 50KV)
  • Maximum Continuous use temperature 110°C
  • Shrink Temperature of 120°C and operating temperature of -55°C to + 110°C
  • Crosses to: Canusa CFW, 3M HDT, 3M ITCSN, Tyco Raychem RHW, LG PHWT
  • Typical applications include: Electrical insulation - Ideal for exposed or underground applications providing good insulation, waterproofing and mechanical protection. Also suitable for Mechanical and abrasion protection, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
Rating:
100% of 100
Diameter DiameterManufacturer Part #Mil Specification #ID Before ShrinkMax ID after shrinkingWall After Shrink (jacket)Wall After Shrink(adhesive) BUY (4ft Length)
3/8" 3/8"HS3AH-0375AMS-DTL-23053/15-1080.354"0.118"0.079"0.01"
$10.28 HS3AH-0375
0.4" 0.4"HS3AH-040-0.39"0.15"0.09"0.01"
$14.00 HS3AH-0400
1/2" 1/2"HS3AH-050-0.512"0.158"0.094"0.012"
$12.20 HS3AH-050
0.8" 3/4"HS3AH-075-0.750"0.24"0.09"0.014"
$16.00 HS3AH-075
0.9" 7/8"HS3AH-090AMS-DTL-23053/15-1010.866"0.236"0.098"0.014"
$14.00 HS3AH-090
1.1" 1.1"HS3AH-110-1.1"0.315"0.12"0.014"
$20.00 HS3AH-110
1.3" 1.3"HS3AH-1375AMS-DTL-23053/15-109 AMS-DTL-23053/15-102 1.299"0.315"0.126"0.014"
$15.00 HS3AH-1375
1.5" 1.5"HS3AH-150-1.50.47"0.16"0.015"
$22.00 HS3AH-150
1.75" 1.75"HS3AH-175AMS-DTL-23053/15-110 AMS-DTL-23053/15-1031.770.472"0.169"0.016"
$19.00 HS3AH-175
2" 2"HS3AH-200-2.00"0.63"0.17"0.017"
$26.00 HS3AH-200
2.15" 2.15"HS3AH-215AMS-DTL-23053/15-1042.165"0.63"0.177"0.016"
$23.00 HS3AH-215
2.7" 2.7"HS3AH-270-2.70"0.87"0.17"0.017"
$32.00 HS3AH-270
3" 3"HS3AH-300AMS-DTL-23053/15-105 AMS-DTL-23053/15-1112.953"0.827"0.173"0.016"
$25.00 HS3AH-300
3.75" 3.75"HS3AH-375-3.74"1.18"0.169"0.018"
$25.50 HS3AH-375
4.5" 4.5"HS3AH-450-4.51.5"0.17"0.018"
$45.00 HS3AH-450
5" 5"HS3AH-500AMS-DTL-23053/15-112 AMS-DTL-23053/15-1065.111.42"0.17"0.018"
$60.00 HS3AH-500
7.1" 7"HS3AH-700-7.10"1.97"0.17"0.018"
$95.00 HS3AH-700
Our 3:1 heavy wall adhesive lined heat shrink tubing is ideal for direct burial of heavy duty electrical cables, where environmental protection is necessary. This high quality heat shrinkable tubing is supplied with an inner adhesive layer, adding a water tight seal to the strain relief the tubing provides. When exposed to heat (usually a bit lower than the activation temperature of the heat shrink), the inner layer begins to flow (just like a hot melt glue). When the tubing shrinks and cools down, the inner layer forms an adhesion layer between the tubing and the component or wire. This provides a watertight seal, protecting the connector and/or wire in direct burial and submersed applications. Meets requirements of AMS-DTL-23053/15 (formerly MIL-I-23053/15), Class 1; UL 224 VW-1 flame retardant (jacket only); UL 486D rated for direct burial; dielectric strength 500 V/mil (500 x Jacket Wall thickness x 1000). Crosses to Canusa CFW, 3M HDT, 3M ITCSN, Tyco Raychem RHW, LG PHWT
  • Dimensions & Technical Specs

Diameter
Part Number
AMS-DTL-23053
Min ID before shrinking
Max ID after shrinking
Wall thickness after shrinking
Length
Jacket Adhesive
0.3" HS3AH-030 - 0.30" 0.1 0.08 0.01 4 ft
3/8" HS3AH-0375 /15-108 0.354" 0.118 0.079 0.01 4 ft
0.4" HS3AH-040 - 0.39" 0.15 0.09 0.01 4 ft
1/2" HS3AH-050 - 0.512" 0.158 0.094 0.012 4 ft
3/4" HS3AH-075 - 0.750" 0.24 0.09 0.014 4 ft
7/8" HS3AH-090 /15-101 0.866" 0.236 0.098 0.014 4 ft
1.1" HS3AH-110 - 1.1" 0.315 0.12 0.014 4 ft
1.3" HS3AH-1375 /15-109
/15-102
1.299" 0.315 0.126 0.014 4 ft
1.5" HS3AH-150 - 1.5 0.47 0.16 0.015 4 ft
1.75" HS3AH-175 /15-110
/15-103
1.77 0.472 0.169 0.016 4 ft
2" HS3AH-200 - 2.00" 0.63 0.17 0.017 4 ft
2.15" HS3AH-215 /15-104 2.165" 0.63 0.177 0.016 4 ft
2.7" HS3AH-270 - 2.70" 0.87 0.17 0.017 4 ft
3" HS3AH-300 /15-105
/15-111
2.953" 0.827 0.173 0.016 4 ft
3.75" HS3AH-375 - 3.74" 1.18 0.169 0.018 4 ft
4.5" HS3AH-450 - 4.5 1.5 0.17 0.018 4 ft
5" HS3AH-500 /15-112
/15-106
5.11 1.42 0.17 0.018 4 ft
7" HS3AH-700 - 7.10" 1.97 0.17 0.018 4 ft
