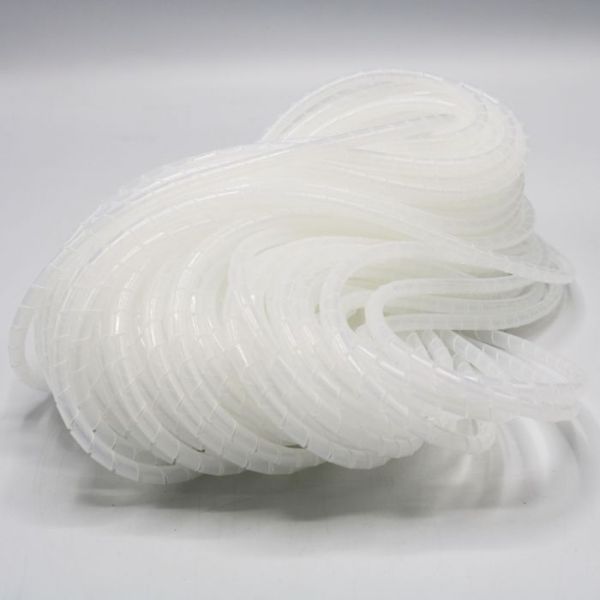

Teflon Spiral Wrap

Teflon Spiral Wrap

Properties:
  • Continuous operating temperature -450°F to 500°F (-268°C to 260°C)
  • Abrasion resistance - very good (comparable to Nylon, superior to polyethylene)
  • Specific gravity (ASTM D792-66) = 2.1
  • Highly solvent resistant (no material is better)
  • Highly resistant to virtually any chemical, especially solvents, strong Acids, strong alkaline environments.
  • Highly Alkaline resistant
  • Extremely low moisture absorption (0.05%)
  • Non-flammable (meets UL VW-1 and UL 94V0 flame tests)
  • Suitable for use in plenum environments.
  • AMS 365 1C, AMS 3653C, AMS 3654, AMS 3655, ASTM D3295
  • MIL I-22129C, P-22296B, MIL T-47287A Type I, AS 1294 approved
Diameter Manufacturer PartIDWall ThicknessMax Bundle Buy
1/8" SW-TFE-01250.065"0.020"1/2"
100 FT/COIL$140.00
3/16" SW-TFE-01880.127"0.030"1 1/2"
100 FT/COIL$250.00
1/4" SW-TFE-0250.187"0.030"2"
100 FT/COIL$275.00
25 FT/COIL$95.00
3/8" SW-TFE-03750.312"0.030"2 1/2"
100 FT/COIL$400.00
25 FT/COIL$56.00
1/2" SW-TFE-0500.438"0.030"3"
100 FT/COIL$550.00
25 FT/COIL$77.00
5/8" SW-TFE-06250.565"0.030"3 1/2"
100 FT/COIL$725.00
25 FT/COIL$95.00
3/4" SW-TFE-0750.686"0.032"4"
100 FT/COIL$990.00
1" SW-TFE-1000.920"0.040"5"
100 FT/COIL$1,250.00
