2:1 Low Temperature Polyolefin Heat Shrink Tubing

Skip to the end of the images gallery

Skip to the beginning of the images gallery

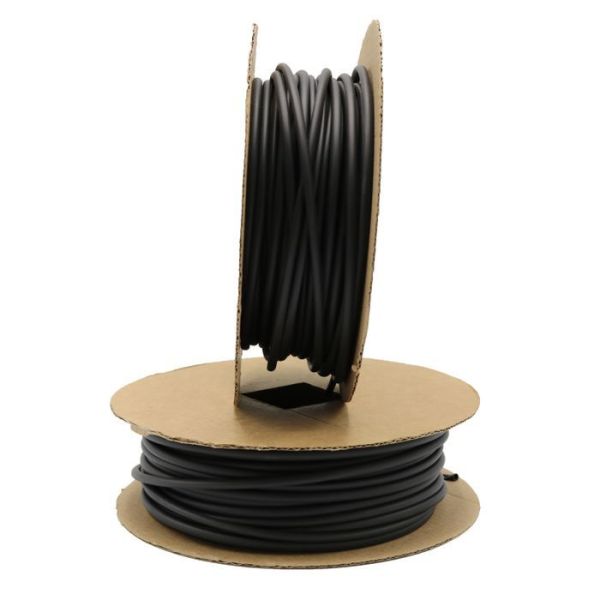

BuyHeatShrink® 2:1 Low Temperature Heat Shrinkable Tubing

NOTE - small spools are in stock. bulk spools have a 2 week lead time

Features:

Lower shrinking temperature than PVC, and higher use temperature
2:1 Shrink Ratio (shrinks to ½ its original diameter)
Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 3
UL 224 VW-1 and CSA OFT recognized
Maximum Continuous use temperature 125°C
2 standard colors: Black, Clear
Shrink Temperature of 80°C and operating temperature of -55°C to + 125°C
Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221V, 3M FP301VW heat shrink, Canusa CPX-876, LG GSHS-1635LT
Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.

Rating:

100 % of 100

1 Review Add Your Review

Price

Diameter	Mil Specification #	Manufacturer Part #	ID Before Shrink	ID After Shrink	Wall After Shrink	Flat Width	Buy
3/64"	AMS-DTL-23053/5-301	HS2LT-0047	0.046"	0.023"	0.018"	1/16"	500 FT/SPOOL $56.22 100 FT/SPOOL $16.87
1/16"	AMS-DTL-23053/5-302	HS2LT-0063	0.063"	0.031"	0.018"	1/8"	500 FT/SPOOL $56.30 100 FT/SPOOL $16.89
3/32"	AMS-DTL-23053/5-303	HS2LT-0094	0.093"	0.047"	0.019"	1/8"	500 FT/SPOOL $56.67 100 FT/SPOOL $17.00
1/8"	AMS-DTL-23053/5-304	HS2LT-0125	0.125"	0.063"	0.019"	3/16"	500 FT/SPOOL $63.44 100 FT/SPOOL $19.03
3/16"	AMS-DTL-23053/5-305	HS2LT-0188	0.187"	0.094"	0.019"	5/16"	500 FT/SPOOL $70.00 250 FT/SPOOL $50.00 50 FT/SPOOL $11.62
1/4"	AMS-DTL-23053/5-306	HS2LT-025	0.25"	0.125"	0.026"	3/8"	250 FT/SPOOL $48.11 50 FT/SPOOL $14.44
3/8"	AMS-DTL-23053/5-307	HS2LT-0375	0.375"	0.188"	0.026"	9/16"	250 FT/SPOOL $53.89 50 FT/SPOOL $16.17
1/2"	AMS-DTL-23053/5-308	HS2LT-050	0.5"	0.25"	0.029"	13/16"	250 FT/SPOOL $63.89 50 FT/SPOOL $19.17
3/4"	AMS-DTL-23053/5-309	HS2LT-075	0.75"	0.375"	0.035"	1-3/16"	200 FT/SPOOL $66.13 50 FT/SPOOL $25.00
1"	AMS-DTL-23053/5-310	HS2LT-100	1"	0.5"	0.039"	1-9/16"	200 FT/SPOOL $99.60 50 FT/SPOOL $42.02
1.5"	AMS-DTL-23053/5-311	HS2LT-150	1.5"	0.75"	0.039"	2-3/8"	100 FT/SPOOL $96.40 25 FT/SPOOL $42.00
2"	AMS-DTL-23053/5-312	HS2LT-200	2"	1"	0.045"	3-1/8"	100 FT/SPOOL $146.38 25 FT/SPOOL $54.89

Datasheets

Download Datasheet here

Details

Our Low-heat shrikable tubing has lower shrinking temperature than PVC, and higher use temperature. Shrinks to ½ its original diameter. Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 3. UL 224 VW-1 and CSA OFT recognized. Maximum Continuous use temperature 125°C. Shrink Temperature of 80°C and operating temperature of -55°C to + 125°C. Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221V, 3M FP301VW heat shrink, Canusa CPX-876, LG GSHS-1635LT. Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation. 2 standard colors: Black, Clear

Tech Data

	Expanded			Recovered
Mil Spec # *	Nominal	Inside Diameter		Inside Diameter		Minimum Wall Thickness
AMS-DTL- 23053/5-	Size	in	mm	in	mm	in	mm
101 and 301	3/64"	0.046	1.2	0.023	0.58	0.018	0.45
102 and 302	1/16"	0.063	1.6	0.031	0.79	0.018	0.45
103 and 303	3/32"	0.093	2.4	0.046	1.17	0.019	0.50
104 and 304	1/8"	0.125	3.2	0.062	1.57	0.019	0.50
105 and 305	3/16"	0.187	4.8	0.093	2.36	0.019	0.50
106 and 306	1/4"	0.250	6.4	0.125	3.18	0.026	0.65
107 and 307	3/8"	0.375	9.5	0.187	4.75	0.026	0.65
108 and 308	1/2"	0.5	12.7	0.25	6.35	0.029	0.75
109 and 309	3/4"	0.75	19.1	0.37	9.35	0.035	0.90
110 and 310	1"	1.00	25.4	0.5	12.7	0.039	1.00
N/A	1-1/4"	1.26	32.2	0.63	16	0.039	1.00
111 and 311	1-1/2"	1.50	38.1	0.75	12.7	0.039	1.00
112 and 312	2"	2	50.8	1	25.4	0.045	1.15
113 and 313	3"	3	76.2	1.5	38.1	0.049	1.25
114 and 314	4"	4	102	2	50.8	0.055	1.40
N/A	5"	5	120	2.5	60	0.059	1.50
N/A	6"	6	150	3	75	0.060	1.52

List of Sku

HS2LT-0047	3/64" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100' Spool
HS2LT-0047-500FT	3/64" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 500' Spool
HS2LT-0063	1/16" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100' Spool
HS2LT-0063-500FT	1/16" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 500' Spool
HS2LT-0094	3/32" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100' Spool
HS2LT-0094-500FT	3/32" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 500' Spool
HS2LT-0125	1/8" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100 Ft Spool
HS2LT-0125-500FT	1/8" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 500 Ft Spool
HS2LT-0188	3/16" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50 Ft Spool
HS2LT-0188-250FT	3/16" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 250 Ft Spool
HS2LT-025	1/4" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50 Ft Spool
HS2LT-025-250FT	1/4" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 250 Ft Spool
HS2LT-0375	3/8" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50' Spool
HS2LT-0375-250FT	3/8" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 250' Spool
HS2LT-050	1/2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50 Ft Spool
HS2LT-050-250FT	1/2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 250 Ft Spool
HS2LT-075	3/4" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50 Ft Spool
HS2LT-075-200FT	3/4" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 200 Ft Spool
HS2LT-100	1" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 50 Ft Spool
HS2LT-100-200FT	1" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 200 Ft Spool
HS2LT-150	1 1/2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 25 Ft Spool
HS2LT-150-100FT	1 1/2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100 Ft Spool
HS2LT-200	2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 25 Ft Spool
HS2LT-200-100FT	2" Low Temperature Heat Shrink Tubing 2:1 Ratio \| 100 Ft Spool
