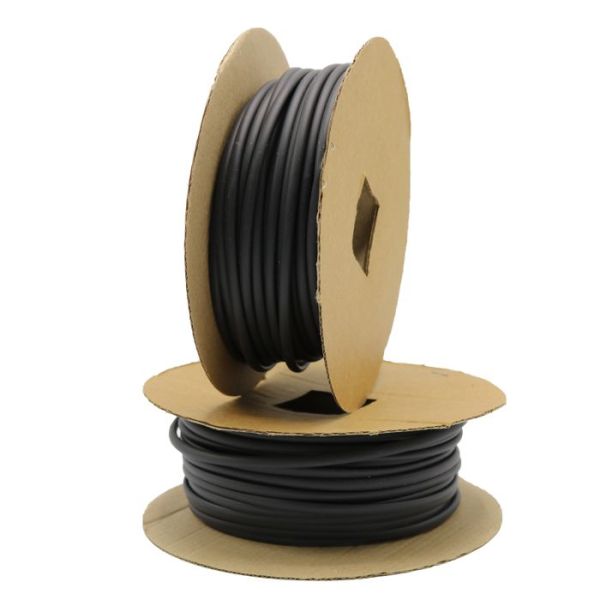

ULTRA THIN WALL Heat Shrink Tubing - 2:1

2:1 ULTRA THIN WALL Heat Shrink Tubing Features

  • Lower shrinking temperature than PVC, and higher use temperature
  • Ultra Thin wall for confined/tight spaces
  • 2:1 Shrink Ratio (shrinks to ½ its original diameter)
  • UL 224 VW-1 300V and CSA OFT 150V recognized
  • Maximum Continuous use temperature 125°C
  • Standard color: Black
  • Shrink Temperature of 100°C and operating temperature of -55°C to + 125°C
  • Crosses to : Sumitomo F4, Raychem Versafit V4 (Versathin), LG GSHS-1635T
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • Operating Temperature: -55° C to 125°
  • Shrink Temperature: 100° C
  • Shrink Ratio: 2 to 1
  • Longitudinal Shrinkage: 5-10%
  • Specifications/Approvals:

    Underwriters Lab: UL 224 300V, 125°C, VW-1
    CSA C22.2

Diameter Buy
3/64"
656 FT/SPOOL$56.22
100 FT/SPOOL$35.00
1/16"
656 FT/SPOOL$56.30
100 FT/SPOOL$35.00
3/32"
656 FT/SPOOL$56.67
100 FT/SPOOL$35.00
1/8"
656 FT/SPOOL$63.44
100 FT/SPOOL$28.00
3/16"
100 FT/SPOOL$35.00
1/4"
656 FT/SPOOL$126.00
100 FT/SPOOL$48.00
3/8"
328 FT/SPOOL$131.20
3/4"
328 FT/SPOOL$229.60
1"
200 FT/SPOOL$230.00

Technical Specifications - 2:1 Ultra Thin Wall Heat Shrinkable Tubing

  • Operating Temperature: -55° C to 125° C
  • Shrink Temperature: 100° C
  • Shrink Ratio: 2 to 1
  • Longitudinal Shrinkage: 5-10%

Specifications/Approvals:

Underwriters Lab: UL 224 300V, 125°C, VW-1
CSA C22.2

Crosses to: Sumitomo F4, Raychem Versafit V-4 (Versathin), LG GSHS-1625T

Dimensions

Expanded Recovered
Part Number Nominal Inside Diameter Inside Diameter Minimum Wall Thickness
HS2T- Size in mm in mm in mm
47 3/64" 0.046 1.2 0.023 0.6 0.007 0.18
63 1/16" 0.063 1.6 0.031 0.8 0.007 0.18
94 3/32" 0.093 2.4 0.046 1.2 0.007 0.18
125 1/8" 0.125 4.8 0.062 1.6 0.007 0.18
188 3/16" 0.187 4.8 0.093 2.4 0.01 0.25
25 1/4" 0.25 6.4 0.125 3.2 0.01 0.25
375 3/8" 0.375 9.5 0.187 4.8 0.011 0.28
50 1/2" 0.5 12.7 0.25 6.4 0.011 0.28
75 3/4" 0.75 19 0.375 9.5 0.016 0.4
100 1" 1 25.4 0.5 12.7 0.016 0.4


2:1 ULTRA THIN WALL Heat Shrink Tubing Features

  • Lower shrinking temperature than PVC, and higher use temperature
  • Ultra Thin wall for confined/tight spaces
  • 2:1 Shrink Ratio (shrinks to ½ its original diameter)
  • UL 224 VW-1 300V and CSA OFT 150V recognized
  • Maximum Continuous use temperature 125°C
  • Standard color: Black
  • Shrink Temperature of 100°C and operating temperature of -55°C to + 125°C
  • Crosses to : Sumitomo F4, Raychem Versafit V4 (Versathin), LG GSHS-1635T
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • Operating Temperature: -55° C to 125°
  • Shrink Temperature: 100° C
  • Shrink Ratio: 2 to 1
  • Longitudinal Shrinkage: 5-10%
  • Specifications/Approvals:

    Underwriters Lab: UL 224 300V, 125°C, VW-1
    CSA C22.2

  • Dimensions & Technical Specs

PN (HS2T-)
Nominal ID
Flattened Width
After Shrinking
ID Wall
47
3/64"
1/16"
0.023"
0.007
63
1/16"
1/8"
0.031"
0.007
94
3/32"
1/8"
0.047"
0.007
100
125
1/8"
3/16"
0.063"
0.007
188
3/16"
5/16"
0.094"
0.01
25
1/4"
3/8"
0.125"
0.01
375 3/8" 9/16" 0.188" 0.011
50 1/2" 13/16" 0.250" 0.011
75 3/4" 1-3/16" 0.375" 0.016
787 7/8" 1-1/4" 0.394" 0.016
100
1"
1-9/16"
0.500"
0.016
