Aerospace Grade Fire sleeving

Aerospace Grade Silco Sleeve®

Features:

Continuous Operating Temperature: 260°C/500°F
Available in sizes 1/4" to 4".
Packaged in spools of 100fttand 100 feet
Halogen Free, ROHS compliant
Self Extinguising - how it relates to the burning of materials
Resists Gasoline, Engine Chemicals & Cleaning Solvents
Made in U.S.A.

Diameter	Part Number	Nominal ID		Buy
1/4"				100 feet/box$254.32 100 feet/box$221.13 sold by the foot$3.10
3/8"				100 feet/box Black$279.86 100 feet/box$243.34
7/16"				100 feet/box Black$308.12 100 feet/box$267.91 sold by the foot$3.75
1/2"				100 feet/box Black$319.25 100 feet/box$277.61 sold by the foot$3.89
5/8"				100 feet/box Black$364.61 100 feet/box$317.05 sold by the foot$4.44
3/4"	BSFA-0375	3/8"	100 feet/box Black$423.83 100 feet/box$368.55 sold by the foot$5.16 sold by the foot$3.41
7/8"				100 feet/box Black$486.07 100 feet/box$422.66 sold by the foot$5.92
1"				100 feet/box Black$545.31 100 feet/box$474.17 sold by the foot$6.64
1-1/8"				100 feet/box Black$581.96 100 feet/box$506.05 sold by the foot$7.08
1-1/4"				100 feet/box Black$613.22 100 feet/box$533.23 sold by the foot$7.47
1-3/8"				100 feet/box Black$689.56 100 feet/box$599.60 sold by the foot$8.39
1-1/2"				100 feet/box Black$746.06 100 feet/box$648.74 sold by the foot$9.08
1-5/8"				100 feet/box Black$754.49 100 feet/box$656.08 sold by the foot$9.19
1-3/4"				100 feet/box Black$833.56 100 feet/box$724.82 sold by the foot$10.15
2"				100 feet/box Black$1,045.46 100 feet/box$909.09 sold by the foot$12.73
2-1/4"				100 feet/box Black$1,172.61 100 feet/box$1,019.66 sold by the foot$14.28
2-1/2"				100 feet/box Black$1,539.95 100 feet/box$1,339.07 sold by the foot$18.75
2-3/4"				100 feet/box Black$1,862.17 100 feet/box$1,619.26 sold by the foot$22.67
3"				100 feet/box Black$2,059.94 100 feet/box$1,791.25 sold by the foot$25.08
3-3/4"				100 feet/box Black$2,528.89 100 feet/box$2,199.02 sold by the foot$30.79
4"				100 feet/box Black$2,690.01 100 feet/box$2,339.12 sold by the foot$32.75
3-1/4"				100 feet/box Black$2,226.51 100 feet/box$1,936.08 sold by the foot$27.11
3-1/2"				100 feet/box Black$2,387.61 100 feet/box$2,076.17 sold by the foot$29.07
1-7/8				100 feet/box Black$952.29 100 feet/box$828.07 sold by the foot$11.59

Features

Product Profile

Continuous Operating Temperature: 260°C/500°F

Design Build: Braided fiberglass substrate coated with silicone rubber

Design Capabilities: Good abrasion resistance; very flexible

Size / Size Range: 1/4" - 4"

Details

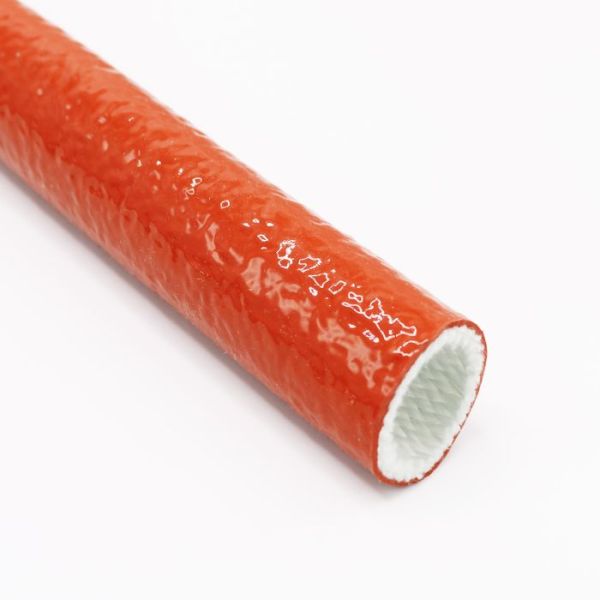

Aerospace Grade Silco Sleeve®

Designed to protect hoses, wires and cables from the hazards of high heat and occasional flame. It protects continuously to 260°C/500°F and will withstand a molten splash at 1200°C/2200°F. Made of braided fiberglass yarns in a flexible substrate, it is then coated with a high grade silicone rubber. Resistant to hydraulic fluids, lubricating oils, and fuels, Silco Sleeve® insulates against energy loss in piping and hosing; protects employees from burns; and allows "bundling" of wires, hoses, and cables. This braided version allows qualified hose assemblies to pass AS1055D testing under stated flow and pressure conditions.

Features:

Continuous Operating Temperature: 260°C/500°F
Available in sizes 1/4" to 4".
Packaged in spools of 100fttand 100 feet
Halogen Free, ROHS compliant
Self Extinguising - how it relates to the burning of materials
Resists Gasoline, Engine Chemicals & Cleaning Solvents
Made in U.S.A.

Tech Data

Dimensions & Technical Specs

Part Number	Nominal ID (inch)	Nominal ID (mm)
BSFA-025	1/4"	6

BSFA-0375	3/8"	10

BSFA-0438	7/16"	11

BSFA-050	1/2"	13

BSFA-0625	5/8"	16

BSFA-075	3/4"	19

BSFA-078	7/8"	22

BSFA-100	1"	25

BSFA-1125	1 1/8"	29

BSFA-125	1 1/4"	32

BSFA-1375	1 3/8"	35


BSFA-150	1 1/2"	38


BSFA-1625	1 5/8"	41


BSFA-175	1 3/4"	44


BSFA-200	2"	51


BSFA-225	2 1/4"	57


BSFA-250	2 1/2"	64


BSFA-275	2 3/4"	70


BSFA-300	3"	76


BSFA-325	3 1/4"	83


BSFA-350	3 1/2"	89


BSFA-375	3 3/4"	95


BSFA-400	4"	102
