Bentley Harris Expando HR

Bentley Harris Expando HR

Features:

  • Made from 0.011" (11 mil) Halar® (E-CTFE) Ethylene-Chlorotrifluoroethylene copolymer monofilament

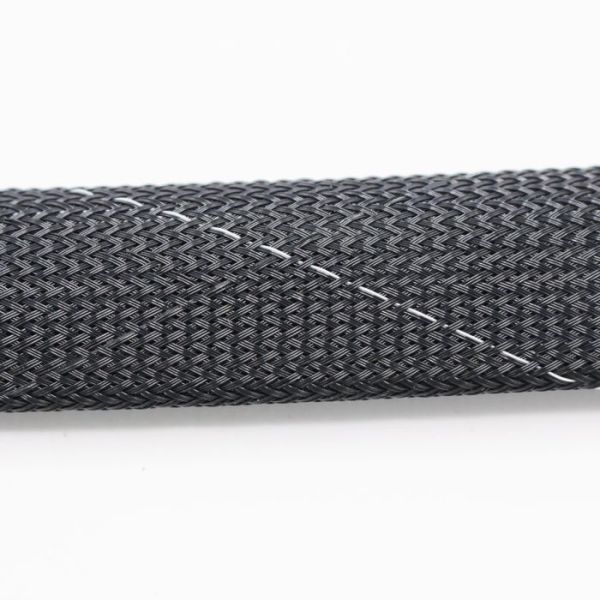

  • Identified by a single contrasting tracer that wraps around the sleeve in a spiral fashion.
  • Chemically inert, thermally stable
  • High Dielectric strength
  • Superior chemical, gas and moisture resistance
  • Continuous temperature rating 150°C
  • Plenum rated material UL2024 (formerly UL910) and NFPA262
  • RoHS Compliant
  • UL VW-1 Fire Retardant.
  • Abrasion and cut resistant
  • Low out-gassing, suitable for plenum applications
  • Excellent cut through and abrasion resistance
  • Continuous use temperature of -70°C to 150°C (-103°F to 302°F)
  • Melt temperature of 240°C (464°F)
  • Expands up to three times its resting diameter
  • Registered in the NASA database for low outgassing
  • Expando HR Plus contains a patented fray resistant treatment.
  • Self Extinguisingplease click here to see the definition of LOI, and how it relates to the burning of materials
  • FAR Part 25 flame rated
Diameter Feet Buy
1/8" 2000 FT/SPOOL
$1,600.00 BSBHHR-0125
1/4" 1000 FT/SPOOL
$1,095.00 BSBHHR-025
1/2" 500 FT/SPOOL
$1,399.00 BSBHHR-050
3/4" 500 FT/SPOOL
$1,999.00 BSBHHR-075
1-1/4" 250 FT/SPOOL
$1,435.00 BSBHHR-125
1-3/4" 250 FT/SPOOL
$2,097.00 BSBHHR-175

Expando HR

Halar expandable braided sleeving is widely used in Space applications, where flame retardancy at elevated oxygen levels is required. Due to its low smoke generation, low outgassing and very high LOI, Halar is a great alternative to PTFE sleeving at a fraction of the cost.

SKUProduct NameManufacturer Part Number (MPN/GTIN)MPN 2

BSBHHR-0125-BW

BSBHHR-0125-WB

1/8" Bentley Harris Expando HR (2000 ft/spool) - Black with White Tracers

1/8" Bentley Harris Expando HR (2000 ft/spool) - White with Black Tracers

5011000332

5011000323

5011000332S

5011000323S

BSBHHR-025-BW

BSBHHR-025-WB

1/4" Bentley Harris Expando HR (1000 ft/spool) - Black with White Tracers

1/4" Bentley Harris Expando HR (1000 ft/spool) - White with Black Tracers

5011000632

5011000623

5011000632S

5011000623S

BSBHHR-050-BW

BSBHHR-050-WB

1/2" Bentley Harris Expando HR (500 ft/spool) - Black with White Tracers

1/2" Bentley Harris Expando HR (500 ft/spool) - White with Black Tracers

5011001332

5011001323

5011001332S

5011001323S

BSBHHR-075-BW

BSBHHR-075-WB

3/4" Bentley Harris Expando HR (500 ft/spool) - Black with White Tracers

3/4" Bentley Harris Expando HR (500 ft/spool) - White with Black Tracers

5011001932

5011001923

5011001932S

5011001923S

BSBHHR-125-BW

BSBHHR-125-WB

1-1/4" Bentley Harris Expando HR (250 ft/spool) - Black with White Tracers

1-1/4" Bentley Harris Expando HR (250 ft/spool) - White with Black Tracers

5011003232

5011003223

5011003232S

5011003223S

BSBHHR-175-BW

BSBHHR-175-WB

1-3/4" Bentley Harris Expando HR (250 ft/spool) - Black with White Tracers

1-3/4" Bentley Harris Expando HR (250 ft/spool) - White with Black Tracers

5011004532

5011004523

5011004532S

5011004523S

Nominal Size Expansion min Expansion Max
1/8" 3/32" 1/4"
1/4 1/8" 3/8"
1/2 1/4" 3/4"
3/4 1/2" 1 1/4"
1 1/4 3/4" 1 3/4"
1 3/4 1" 2 3/4"
