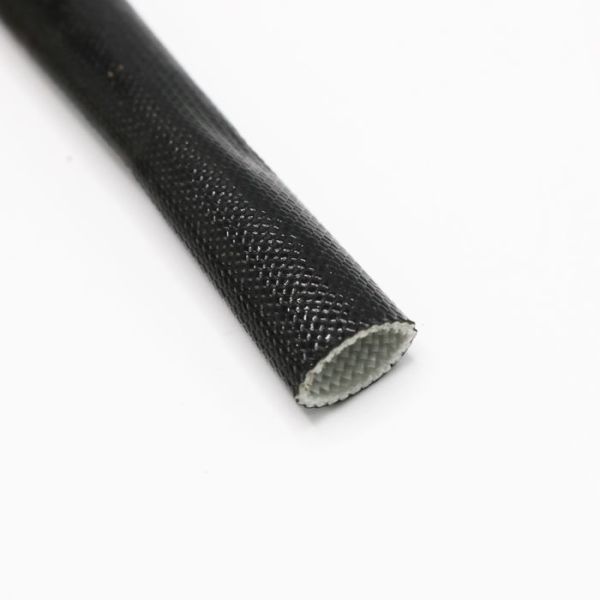

A Grade Acrylic Fiberglass sleeving

Acrylic Coated Fiberglass sleeving Grade A

Features:
  • Tightly braided fiberglass sleeve completely coated with acrylic resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class F (-25 to 155°C)
  • Meets Mil-I-3190/3
  • CSA rated
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6
  • Compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties.
  • Dielectric Grade A: 7000V minimum average breakdown, 5000V minimum individual.
  • High quality equivalent to: Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series (417F is Grade A), Alpha Wire AF155
Size Part NumberAWG SizeID Buy
24 AWG BSACRA-024G240.022
500 FT/SPOOL$58.00
22 AWG BSACRA-022220.027
500 FT/SPOOL$58.00
20 AWG BSACRA-020G200.034
500 FT/SPOOL$59.00
18 AWG BSACRA-018G180.042
500 FT/SPOOL$61.00
17 AWG BSACRA-017G170.047
500 FT/SPOOL$62.00
16 AWG BSACRA-016G160.053
500 FT/SPOOL$62.00
15 AWG BSACRA-015G150.059
500 FT/SPOOL$64.00
14 AWG BSACRA-014G140.066
500 FT/SPOOL$66.00
13 AWG BSACRA-013G130.076
250 FT/SPOOL$38.00
12 AWG BSACRA-012G120.085
250 FT/SPOOL$39.00
10 AWG BSACRA-010G100.106
250 FT/SPOOL$44.00
9 AWG BSACRA-009G90.118
250 FT/SPOOL$46.00
8 AWG BSACRA-008G80.133
250 FT/SPOOL$50.00
7 AWG BSACRA-007G70.148
250 FT/SPOOL$53.00
6 AWG BSACRA-006G60.166
250 FT/SPOOL$58.00
5 AWG BSACRA-005G50.186
250 FT/SPOOL$64.00
4 AWG BSACRA-004G40.208
250 FT/SPOOL$76.00
3 AWG BSACRA-003G30.234
250 FT/SPOOL$84.00
2 AWG BSACRA-002G20.263
250 FT/SPOOL$98.00
1 AWG BSACRA-001G10.294
250 FT/SPOOL$110.00
3/8" BSACRA-03753/8"0.387
100 FT/SPOOL$69.00
7/16" BSACRA-043757/6"0.45
100 FT/SPOOL$91.00
1/2" BSACRA-0501/2"0.512
100 FT/SPOOL$107.00
5/8" BSACRA-06255/8"0.64
100 FT/SPOOL$133.00
3/4" BSACRA-0753/4"0.786
100 FT/SPOOL$161.00
7/8" BSACRA-08757/8"0.893
100 FT/SPOOL$196.00
1" BSACRA-1001"1.018
100 FT/SPOOL$246.00

A Grade Acrylic Fiberglass sleeving

Acrylic coated fiberglass braided sleeving is commonly used in high voltage applications such as motors, transformers, welding appratus, coils, and lighting ballasts. Because of its versatility and 155°C termpearture rating, acrylic coated fiberglass sleeving has also found many uses in appliances such as lighting fixtures (ballasts), stoves, oven and furnace controls, relays, breaker panels, and many other commercial and industrial applications.

Features:
  • Tightly braided fiberglass sleeve completely coated with acrylic resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class F (-25 to 155°C)
  • Meets Mil-I-3190/3
  • CSA rated
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6
  • Compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties.
  • Dielectric Grade A: 7000V minimum average breakdown, 5000V minimum individual.
  • High quality equivalent to: Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series (417F is Grade A), Alpha Wire AF155


Size
AWG SizeID
240.022
220.027
200.034
180.042
170.047
160.053
150.059
140.066
130.076
120.085
110.095
100.106
90.118
80.133
70.148
60.166
50.186
40.208
30.234
20.263
10.294
00.33
3/8"0.387
7/16"0.45
1/2"0.512
5/8"0.64
3/4"0.786
7/8"0.893
1"1.018
