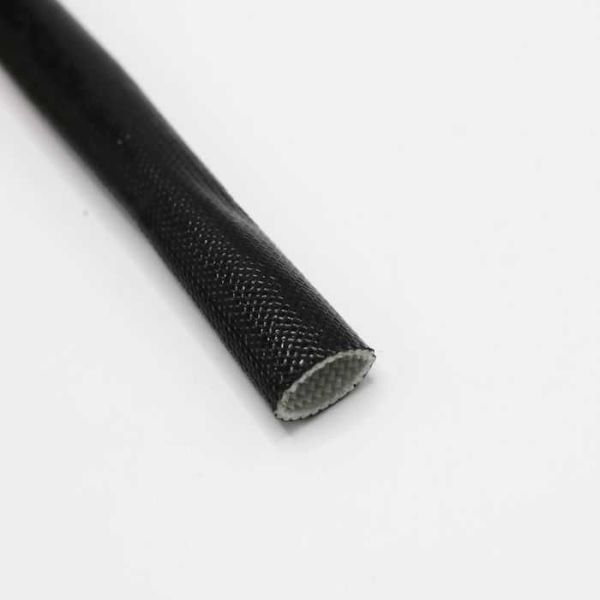

Silicone coated fiberglass sleeving

Silicone coated fiberglass sleeving;

Features:

Tightly braided fiberglass sleeve completely coated with silicone resin to provide superior electrical and thermal protection.
Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
MIL-I-3190/6, MIL-P-18057 (grade A)
CSA rated
Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
Dielectric Grade A: 8000V minimum average breakdown, 6000V minimum individual.
The coating maintains its electrical integrity - even under severe fire conditions - by forming a non-conductive ash.
High quality equivalent to: Ben-Har 1151-XL200A, Varflo sleeving, Hilec Turbo 117F, Hilec Vol-Sil Grade A, Alpha Wire PIF-200

Size	Feet	Part Number	ID	Buy
24 AWG	500 FT/SPOOL	BSSIL-024G	0.022"	$119.00 BSSIL-024G
22 AWG	500 FT/SPOOL	BSSIL-022G	0.027"	$121.00 BSSIL-022G
20 AWG	500 FT/SPOOL	BSSIL-020G	0.034"	$123.00 BSSIL-020G
18 AWG	500 FT/SPOOL	BSSIL-018G	0.042"	$129.00 BSSIL-018G
17 AWG	500 FT/SPOOL	BSSIL-017G	0.047"	$131.00 BSSIL-017G
16 AWG	500 FT/SPOOL	BSSIL-016G	0.053"	$135.00 BSSIL-016G
15 AWG	500 FT/SPOOL	BSSIL-015G	0.059"	$138.00 BSSIL-015G
14 AWG	500 FT/SPOOL	BSSIL-014G	0.066"	$150.00 BSSIL-014G
13 AWG	500 FT/SPOOL	BSSIL-013G	0.076"	$75.00 BSSIL-013G
12 AWG	250 FT/SPOOL	BSSIL-012G	0.085"	$79.00 BSSIL-012G
11 AWG	250 FT/SPOOL	BSSIL-011G	0.095"	$83.00 BSSIL-011G
10 AWG	250 FT/SPOOL	BSSIL-010G	0.106"	$88.00 BSSIL-010G
9 AWG	250 FT/SPOOL	BSSIL-009G	0.118"	$92.00 BSSIL-009G
8 AWG	250 FT/SPOOL	BSSIL-008G	0.133"	$99.00 BSSIL-008G
7 AWG	250 FT/SPOOL	BSSIL-007G	0.148"	$106.00 BSSIL-007G
6 AWG	250 FT/SPOOL	BSSIL-006G	0.166"	$113.00 BSSIL-006G
5 AWG	250 FT/SPOOL	BSSIL-005G	0.186"	$124.00 BSSIL-005G
4 AWG	250 FT/SPOOL	BSSIL-004G	0.208"	$138.00 BSSIL-004G
3 AWG	250 FT/SPOOL	BSSIL-003G	0.234"	$159.00 BSSIL-003G
2 AWG	250 FT/SPOOL	BSSIL-002G	0.263"	$187.00 BSSIL-002G
1 AWG	100 FT/SPOOL	BSSIL-001G	0.294"	$84.00 BSSIL-001G
0 AWG	100 FT/SPOOL	BSSIL-000G	0.33"	$101.00 BSSIL-000G
3/8"	100 FT/SPOOL	BSSIL-0375	0.387"	$141.00 BSSIL-0375
1/2"	100 FT/SPOOL	BSSIL-050	0.512"	$215.00 BSSIL-050
5/8"	100 FT/SPOOL	BSSIL-0625	0.64"	$263.00 BSSIL-0625
3/4"	100 FT/SPOOL	BSSIL-075	0.786"	$237.00 BSSIL-075
7/8"	100 FT/SPOOL	BSSIL-0875	0.893"	$382.00 BSSIL-0875
1"	100 FT/SPOOL	BSSIL-100	1.018"	$466.00 BSSIL-100

Details

Silicone Fiberglass Braided Sleeving

Silicone coated fiberglass braided sleeving is used for insulation of leads and connections in electrical and electronic components ( transformers, coils, relays, solenoids etc.) where temperature range from –70°C through 200°C are encountered. Silicone rubber coated glass sleeving is the only flexible insulating material which remains useful for continuous service in ambient temperatures from -70°C through +200°C. Operation at temperatures up to 315 ° C is tolerated for short durations. Exceeds all requirements of UL Subject 224 for 200 ° C, 600-volt operation. It also exceeds the requirements of MIL-I-3190, MIL-P-18057, and ASTM D372.

Features:

Tightly braided fiberglass sleeve completely coated with silicone resin to provide superior electrical and thermal protection.
Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
MIL-I-3190/6, MIL-P-18057 (grade A)
CSA rated
Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
Dielectric Grade A: 8000V minimum average breakdown, 6000V minimum individual.
The coating maintains its electrical integrity - even under severe fire conditions - by forming a non-conductive ash.
High quality equivalent to: Ben-Har 1151-XL200A, Varflo sleeving, Hilec Turbo 117F, Hilec Vol-Sil Grade A, Alpha Wire PIF-200

Tech Data

Size
AWG Size	ID
24	0.022
22	0.027
20	0.034
18	0.042
17	0.047
16	0.053
15	0.059
14	0.066
13	0.076
12	0.085
11	0.095
10	0.106
9	0.118
8	0.133
7	0.148
6	0.166
5	0.186
4	0.208
3	0.234
2	0.263
1	0.294
0	0.33
3/8"	0.387
7/16"	0.45
1/2"	0.512
5/8"	0.64
3/4"	0.786
7/8"	0.893
1"	1.018
