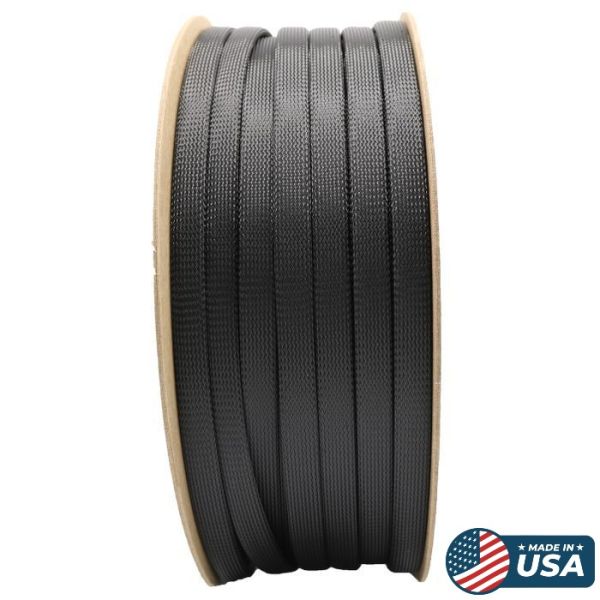

Non-Fray PET Expandable Braided Cable Sleeving

BuyHeatShrink® Fray Resistant PET Braided Sleeving:

Features:

  • Excellent cut through and abrasion resistance
  • Can be cut with sharp scissors instead of a hot knife for fray resistant ends
  • High quality alternative to Bentley Harris Expando PT Plus®, Alpha GRP-110NF
  • Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
  • Melt temperature of 230°C (446°F)
  • Expands up to two times its resting diameter
  • Halogen Free, ROHS compliant
  • Self Extinguishing
  • Resists Gasoline, Engine Chemicals & Cleaning Solvents
  • Braided from 10 mil polyethylene terephthalate (PET) monofilament yarns.
  • Registered in the NASA database for low outgassing (under CS Technical as the manufacturer)
  • Colors Available: Black
Diameter Part NumberExpansion minExpansion Max Buy
1/8" BSNF01253/32"1/4"
1000 FT/SPOOL$165.00
100 FT/SPOOL$20.90
1/4" BSNF0251/8"3/8"
500 FT/SPOOL$104.50
100 FT/SPOOL$27.50
3/8" BSNF03753/16"5/8"
500 FT/SPOOL$143.00
100 FT/SPOOL$36.30
1/2" BSNF0501/4"3/4"
250 FT/SPOOL$83.60
50 FT/SPOOL$28.60
3/4" BSNF0751/2"1 1/4"
250 FT/SPOOL$105.05
50 FT/SPOOL$37.40
1" BSNF1003/4"1 1/2"
250 FT/SPOOL$114.13
100 FT/SPOOL$69.30
50 FT/SPOOL$40.70
1-3/4" BSNF1751 1/2"2 1/4"
250 FT/SPOOL$284.90
50 FT/SPOOL$66.00
Our fray Resistant PET Braided Sleeve has excellent cut through and abrasion resistance. It can be cut with sharp scissors instead of a hot knife for fray resistant ends. Our sleeving is a high quality alternative to Bentley Harris Expando PT Plus, Alpha GRP-110NF. With continuous use temperature of -70C to 125C (-103F to 257F) and melt temperature of 230C (446F), it expands up to two times its resting diameter. This Non-Fray Braided Sleeving is halogen free, self extinguishing, resists gasoline, common automotive and marine application engine chemicals & cleaning Solvents. Braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. Registered in the NASA database for low outgassing (under CS Technical as the manufacturer). ROHS compliant Colors Available: Black
  • Dimensions & Technical Specs

Nominal Size Part Number Expansion min Expansion Max
1/8"
BSNF0125
3/32"
1/4"
1/4"
BSNF025
1/8"
3/8"
3/8"
BSNF0375
3/16"
5/8"
1/2"
BSNF050
1/4"
3/4"
3/4"
BSNF075
1/2"
1 1/4"
1"
BSNF100
3/4"
1 1/2"
1 3/4"
BSNF175
1 1/2"
2 1/4"
