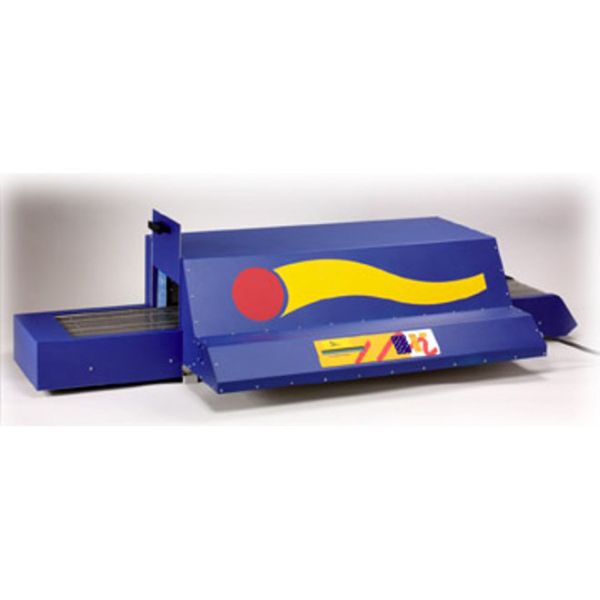

AMTI Model 2525 Heat Shrink Tunnel Machine | Industrial Oven

Model 2525 Industrial Oven


SCHEME™ Speed Controlled Energy Management Environment
A proprietary system that automatically varies the speed of the conveyor to compensate for changing temperatures. The result is a constant heat - time product that insures superior uniformity of output product at speeds to 100 inches per minute. There is little or no waiting to load the conveyor.

  • Accurate Digital Speed Control (using stepper motor)
  • Electronic Temperature Control
  • Turbulent Air Flow system for fast processing
  • 99 Programs available for storing speeds and temperature
  • High Limit Safety Shut Down (if blowers fail)
  • Conveyor Stop Safety Shut Down (if conveyors stop moving when they are programmed to run: the heat is shut off)
  • Two Year Warranty on Electronics, One Year on All Mechanical Parts exclusive of conveyor belt and bearings
  • Digital Date and Time Clock
  • Automatic Settable Start Up and Shut Down Times with choice of days of the week

Oven Specifications:

  • Operating Oven Temperature Range: Room temperature to 350 deg. F
  • Conveyor Speed: 1 to 100 inches per minute
  • Oven opening: height 6", width 12"
  • Length of unit including conveyors: 92" x 12"wide.
  • Length of conveyor outside of oven27"
  • Length of Oven Housing: 52" x 36"wide x 18"high
  • Weight: 200 lbs
  • Operating Voltage: 220V Operating Power requirements; 5000 watts 20 Amps Single PH
  • Operating Ambient Temperature range: 10 to 40 deg. C
  • CE Listed FCC Class B Certification Patents Pending

Optional Components:

Custom extruded aluminum movable stand with 5" dia. locking wheels……….$975.00 USD

EST. Ship: 4-6 weeks ARO. F.O.B. Niles, IL

Every New Shrink Industrial Oven carries a One Year Warranty on the electronics and mechanical components (excluding conveyor belt & bearings).

Optional Components Buy
Heat Shrink Oven 2525
$19,500.00 OVEN
Heat Shrink Oven Stand
$975.00 OVEN-STAND
