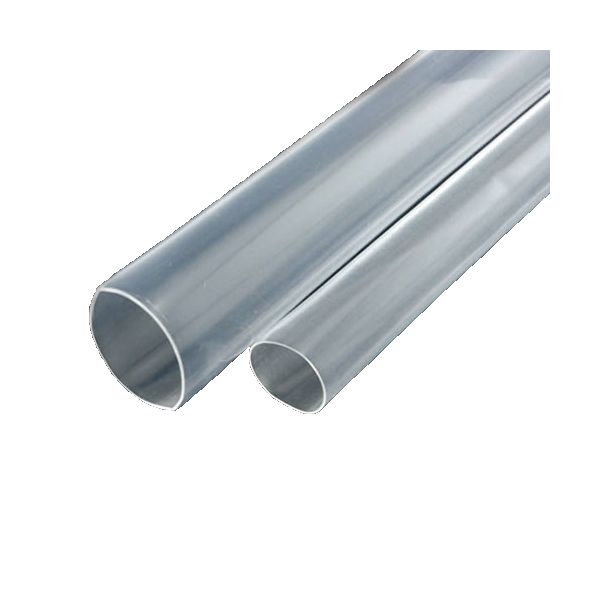

FEP/PTFE (standard wall) Dual Shrink tubing (4ft per piece)
Features
-
Continuous operating temperature -454°F to 500°F (-270°C to 260°C)
-
Outstanding resistance to almost any chemical known (exceptions: alkali metals in molten state, fluorine gas at high temperatures, chlorine trifluoride).
-
FDA and USP Class VI approved
-
Very low coefficient of friction
-
Good dielectric strength
-
Flame rating UL94 V0 and VW-1
-
Limiting Oxygen Index greater than 95
-
ETO and autoclave sterilizable
-
Mil spec approved (AMS-DTL-23052/12)
| Diameter | Manufacturer Part | Before Shrinking | After shrinking | Wall Thickness | BUY (4ft Length) |
|---|---|---|---|---|---|
| 1/32" | HSFEP/PTFE-SW-0036 | 0.036" | *0.036* | 0.023" | |
| 1/16" | HSFEP/PTFE-SW-0060 | 0.060" | *0.060* | 0.028" | |
| 1/8" | HSFEP/PTFE-SW-0125 | 0.130" | *0.130* | 0.032" | |
| 3/16" | HSFEP/PTFE-SW-0188 | 0.19 | 0.062" | 0.035" | |
| 1/4" | HSFEP/PTFE-SW-025 | 0.250" | 0.125" | 0.035" | |
| 3/8" | HSFEP/PTFE-SW-0375 | 0.350" | 0.190" | 0.035" | |
| 1/2" | HSFEP/PTFE-SW-050 | 0.450" | 0.312" | 0.055" | |
| 3/4" | HSFEP/PTFE-SW-075 | 0.700" | 0.440" | 0.055" | |
| 1" | HSFEP/PTFE-SW-100 | 0.950" | 0.630" | 0.065" |
FEP/PTFE Dual Shrink Heat Shrinkable Tubing
PTFE heat shrink tubing has a very high continuous use temperature (260°C), and outstanding chemical resistance. Combining this with a lower melt temperature material (FEP) on the inside makes the only high temperature adhesive lined heat shrink tubing on the market. It is available in 2:1 shrink ratio, and meets or exceeds the most stringent commercial (UL VW-1, UL 910, NFPA262) and military standards (AMS-DTL-23053/12).
Features
-
Continuous operating temperature -454°F to 500°F (-270°C to 260°C)
-
Outstanding resistance to almost any chemical known (exceptions: alkali metals in molten state, fluorine gas at high temperatures, chlorine trifluoride).
-
FDA and USP Class VI approved
-
Very low coefficient of friction
-
Good dielectric strength
-
Flame rating UL94 V0 and VW-1
-
Limiting Oxygen Index greater than 95
-
ETO and autoclave sterilizable
-
Mil spec approved (AMS-DTL-23052/12)
-
Dimensions & Technical Specs
| Size | |||
| Nominal | Before Shrinking | After shrinking | Wall Thickness |
| 1/32" | 0.036" | *0.036* | 0.023" |
| 1/16" | 0.060" | *0.060* | 0.028" |
| 1/8" | 0.130" | *0.130* | 0.032" |
| 5/32" | 0.16 | *0.160* | 0.032" |
| 3/16" | 0.19 | 0.062" | 0.035" |
| 1/4" | 0.250" | 0.125" | 0.035" |
| 3/8" | 0.350" | 0.190" | 0.035" |
| 1/2" | 0.450" | 0.312" | 0.055" |
| 3/4" | 0.700" | 0.440" | 0.055" |
| 1" | 0.950" | 0.630" | 0.065" |
