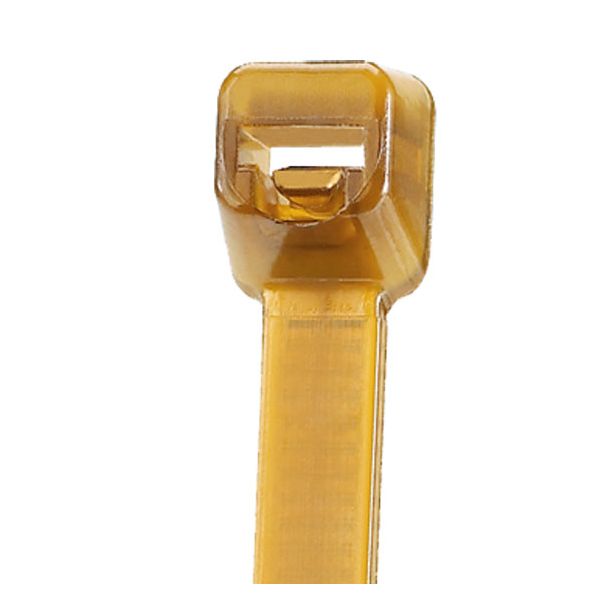

Panduit PEEK Cable Ties
Panduit PEEK Cable Ties
Features:
- 100 ties/bag
-
RoHS Compliant
-
Panduit Brand Cable Ties
-
Material: polyetheretherketone (PEEK)
-
Weather resistant, UV resistant
-
Color Available: translucent brown
-
Material Flammability Rating UL94 V-0 with low smoke and toxicity
-
Designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments
-
Non-conductive material
-
Continuous use temperature: 500°F (260°C)
-
Meets MIL specification MIL-P-46183
-
Approved for use by the Department of Defense
| Length | Part Number | Nominal Size | Actual Length | Width | Min Loop Tensile | Max bundle Diameter | Buy (100 ties/bag) |
|---|---|---|---|---|---|---|---|
| 4" | CT-PEEK-04 | 4" | 4.0" | 0.098" | 35LB | 0.9" | |
| 6" | CT-PEEK-06 | 5" | 5.8" | 0.098" | 35 LB | 1.38" | |
| 7" | CT-PEEK-07 | 7" | 7.4" | 0.19" | 150"LB | 1.88" |
Panduit PEEK Cable Ties
Features:
- 100 ties/bag
-
RoHS Compliant
-
Panduit Brand Cable Ties
-
Material: polyetheretherketone (PEEK)
-
Weather resistant, UV resistant
-
Color Available: translucent brown
-
Material Flammability Rating UL94 V-0 with low smoke and toxicity
-
Designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments
-
Non-conductive material
-
Continuous use temperature: 500°F (260°C)
-
Meets MIL specification MIL-P-46183
-
Approved for use by the Department of Defense
| SKU | Product Name | Mannufacturer Part Number (MPN) | MPN 2 |
|---|---|---|---|
| CT-PEEK-04 | 4" Panduit PEEK Cable Ties | PLT1M-C71 | PLT1M-M71 |
| CT-PEEK-06 | 6" Panduit PEEK Cable Ties | PLT1.5M-C71 | |
| CT-PEEK-07 | 7" Panduit PEEK Cable Ties | PLT2S-C71 | PLT2S-M71 |
-
Dimensions & Technical Specs
| Nominal Size | Actual Length | Width | Min Loop Tensile | Max bundle Diameter |
| 4" | 4.0" | 0.098" | 35 LB | 0.9" |
| 5" | 5.8" | 0.098" | 35 LB | 1.38" |
| 7" | 7.4" | 0.19" | 150LB | 1.88" |
