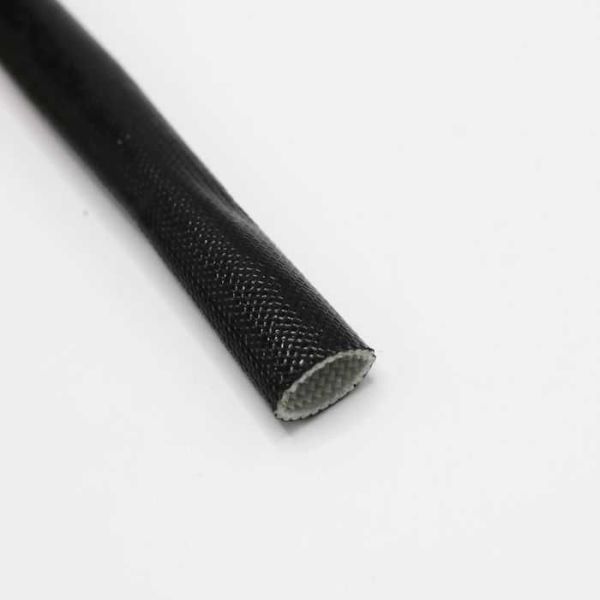

Tightly braided fiberglass sleeve completely coated with silicone resin to provide superior electrical and thermal protection
Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
15kV Dielectric Strength
The coating maintains its electrical integrity - even under severe fire conditions - by forming a non-conductive ash
Silicone coated fiberglass braided wire protection sleeve is used for insulation of leads and connections in electrical and electronic components, including transformers, coils, relays, solenoids, etc. where temperatures range from -70℃ through +200℃.
Silicone rubber coated glass sleeving is the only flexible insulating material which remains useful for continuous service in ambient temperatures from -70℃ through +200℃, as the coating maintains its electrical integrity even under severe fire conditions by forming non-conductive ash.
Buy Heat Shrink sleeves are UL/NEMA Thermal Class H. Our 15kV grade tightly braided fiberglass sleeve is completely coated with silicone resin, providing superior electrical and thermal protection—making them a high quality equivalent to Ben-Har 1151-FRC, Hilec 547R, Hilec Vol-Sil Grade C, Suflex Acrylflex F
