BuyHeatShrink® Silicone Coated Fiberglass Sleeving GRADE B
NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME

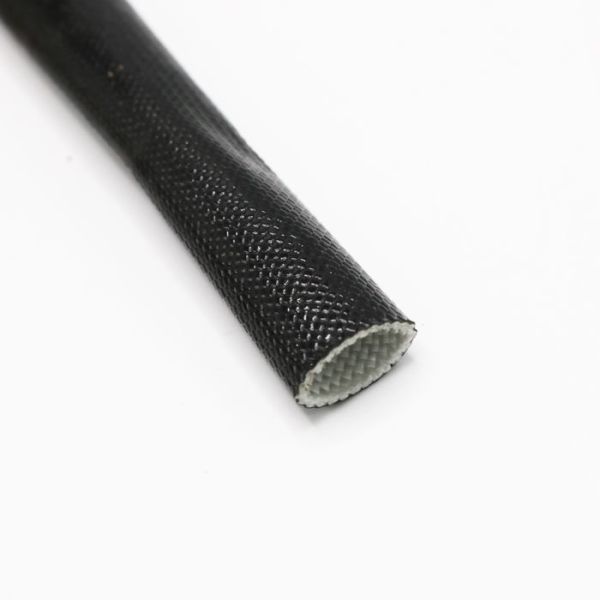

Tightly braided fiberglass sleeve is completely coated with silicone resin to provide superior electrical and thermal protection.
Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
Dielectric Grade B: 4000V minimum average breakdown, 2500V minimum individual.
The coating maintains its electrical integrity—even under severe fire conditions—by forming a non-conductive ash
High quality equivalent to: Ben-Har 1151-FRC, Hilec 547R, Hilec Vol-Sil Grade C, Suflex Acrylflex F
Silicone coated fiberglass braided wire protection sleeve is used for insulation of leads and connections in electrical and electronic components, including transformers, coils, relays, solenoids, etc. where temperatures range from -70℃ through +200℃.
Silicone rubber coated glass sleeving is the only flexible insulating material which remains useful for continuous service in ambient temperatures from -70℃ through +200℃, as the coating maintains its electrical integrity even under severe fire conditions by forming non-conductive ash.
Buy Heat Shrink sleeves are UL/NEMA Thermal Class H. Our B grade tightly braided fiberglass sleeve is completely coated with silicone resin, providing superior electrical and thermal protection—making them a high quality equivalent to Ben-Har 1151-FRC, Hilec 547R, Hilec Vol-Sil Grade C, Suflex Acrylflex F
