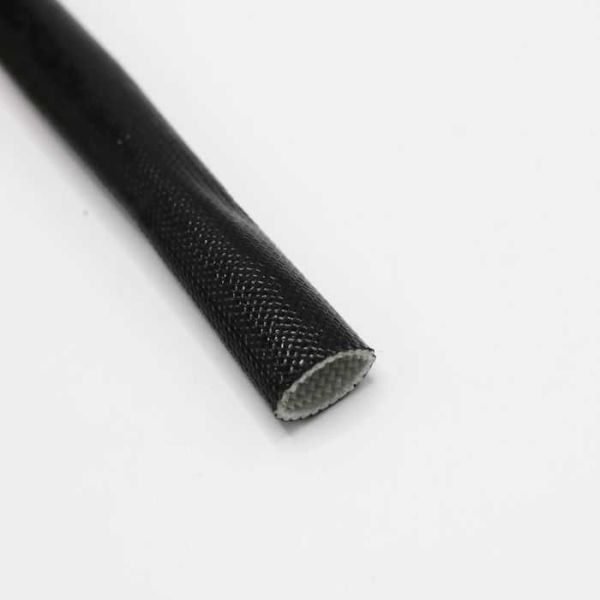

BuyHeatShrink® Silicone Coated Fiberglass Sleeving GRADE C

NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed

Features:
  • Tightly braided fiberglass sleeve is completely coated with silicone resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
  • Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
  • Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
  • Dielectric Grade C: 2500V minimum average breakdown, 1500V minimum individual.
  • The coating maintains its electrical integrity—even under severe fire conditions—by forming a non-conductive ash.
  • High quality equivalent to: Ben-Har 1151-FRC, Hilec 547R, Hilec Vol-Sil Grade C, Suflex Acrylflex F

Silicone coated fiberglass braided wire protection sleeve is used for insulation of leads and connections in electrical and electronic components, including transformers, coils, relays, solenoids, etc. where temperatures range from -70℃ through +200℃.

Silicone rubber coated glass sleeving is the only flexible insulating material which remains useful for continuous service in ambient temperatures from -70℃ through +200℃, as the coating maintains its electrical integrity even under severe fire conditions by forming non-conductive ash.

Be the first to review this product
Size Feet Part NumberID Buy
24 AWG 500 FT/SPOOL BSSILC1-024G0.022"
$178.73 BSSILC1-024G
22 AWG 500 FT/SPOOL BSSILC1-022G0.027"
$179.55 BSSILC1-022G
20 AWG 500 FT/SPOOL BSSILC1-020G0.034"
$189.31 BSSILC1-020G
18 AWG 500 FT/SPOOL BSSILC1-018G0.042"
$194.54 BSSILC1-018G
17 AWG 500 FT/SPOOL BSSILC1-017G0.047"
$200.31 BSSILC1-017G
16 AWG 500 FT/SPOOL BSSILC1-016G0.053"
$205.26 BSSILC1-016G
15 AWG 500 FT/SPOOL BSSILC1-015G0.059"
$209.66 BSSILC1-015G
14 AWG 500 FT/SPOOL BSSILC1-014G0.066"
$111.75 BSSILC1-014G
13 AWG 500 FT/SPOOL BSSILC1-013G0.076"
$122.34 BSSILC1-013G
12 AWG 250 FT/SPOOL BSSILC1-012G0.085"
$123.16 BSSILC1-012G
11 AWG 250 FT/SPOOL BSSILC1-011G0.095"
$128.66 BSSILC1-011G
10 AWG 250 FT/SPOOL BSSILC1-010G0.106"
$135.33 BSSILC1-010G
9 AWG 250 FT/SPOOL BSSILC1-009G0.118"
$142.28 BSSILC1-009G
8 AWG 250 FT/SPOOL BSSILC1-008G0.133"
$145.64 BSSILC1-008G
7 AWG 250 FT/SPOOL BSSILC1-007G0.148"
$174.40 BSSILC1-007G
6 AWG 250 FT/SPOOL BSSILC1-006G0.166"
$188.56 BSSILC1-006G
5 AWG 250 FT/SPOOL BSSILC1-005G0.186"
$208.84 BSSILC1-005G
4 AWG 250 FT/SPOOL BSSILC1-004G0.208"
$228.58 BSSILC1-004G
3 AWG 250 FT/SPOOL BSSILC1-003G0.234"
$268.79 BSSILC1-003G
2 AWG 250 FT/SPOOL BSSILC1-002G0.263"
$129.41 BSSILC1-002G
1 AWG 100 FT/SPOOL BSSILC1-001G0.294"
$147.93 BSSILC1-001G
0 AWG 100 FT/SPOOL BSSILC1-000G0.33"
$907.79 BSSILC1-000G
3/8" 100 FT/SPOOL BSSILC1-03750.387"
$177.90 BSSILC1-0375
7/16" 100 FT/SPOOL BSSILC1-04650.387"
$210.71 BSSILC1-0438
1/2" 100 FT/SPOOL BSSILC1-0500.512"
$275.34 BSSILC1-050
5/8" 100 FT/SPOOL BSSILC1-06250.64"
$340.31 BSSILC1-0625
3/4" 100 FT/SPOOL BSSILC1-0750.786"
$389.19 BSSILC1-075
7/8" 100 FT/SPOOL BSSILC1-08750.893"
$399.85 BSSILC1-0875
1" 100 FT/SPOOL BSSILC1-1001.018"
$484.33 BSSILC1-100
