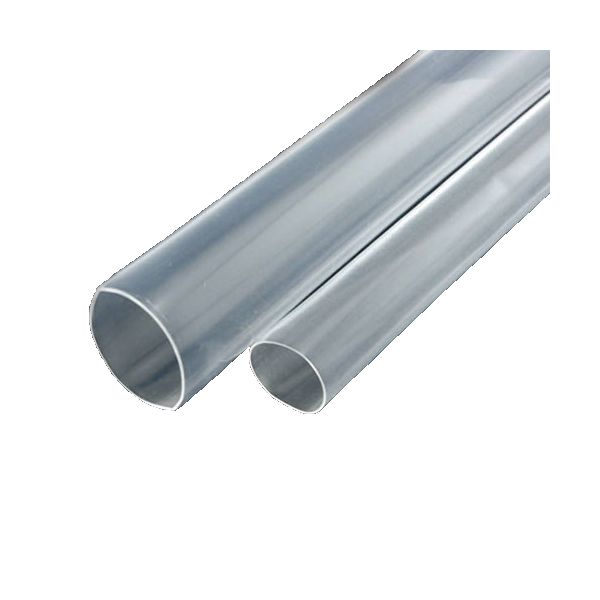

FEP 1.3:1 Heat Shrink Tubing (4ft/piece)
FEP 1.3:1 Heat Shrink Tubing
Features:
- Each piece is 4 feet long
- Operating Temperature: -67° C to 200° C (-88°F to 392°F)
- Shrink Temperature: 100° C (212°F)
- Shrink Ratio: 1.3 to 1
- Longitudinal Shrinkage: up to 15%
| Size | Mil Specification # | Manufacturer Part # | ID Before Shrink | ID After Shrink | Wall After Shrink | BUY (4ft Length) |
|---|---|---|---|---|---|---|
| 24 AWG | AMS-DTL-23053/11-101-C | HSFEP13-024G | 0.031" | 0.027" | 0.008" | |
| 22 AWG | AMS-DTL-23053/11-102-C | HSFEP13-022G | 0.036" | 0.032" | 0.008" | |
| 20 AWG | AMS-DTL-23053/11-103-C | HSFEP13-020G | 0.045" | 0.039" | 0.008" | |
| 18 AWG | AMS-DTL-23053/11-104-C | HSFEP13-018G | 0.060" | 0.049" | 0.008" | |
| 16 AWG | AMS-DTL-23053/11-105-C | HSFEP13-016G | 0.075" | 0.061" | 0.009" | |
| 14 AWG | AMS-DTL-23053/11-106-C | HSFEP13-014G | 0.092" | 0.072" | 0.009" | |
| 12 AWG | AMS-DTL-23053/11-107-C | HSFEP13-012G | 0.115" | 0.089" | 0.009" | |
| 10 AWG | AMS-DTL-23053/11-108-C | HSFEP13-010G | 0.141" | 0.114" | 0.010" | |
| 9 AWG | AMS-DTL-23053/11-109-C | HSFEP13-009G | 0.158" | 0.124" | 0.010" | |
| 8 AWG | AMS-DTL-23053/11-110-C | HSFEP13-008G | 0.180" | 0.143" | 0.010" | |
| 7 AWG | AMS-DTL-23053/11-111-C | HSFEP13-007G | 0.197" | 0.158" | 0.011" | |
| 6 AWG | AMS-DTL-23053/11-112-C | HSFEP13-006G | 0.225" | 0.180" | 0.011" | |
| 5 AWG | AMS-DTL-23053/11-113-C | HSFEP13-005G | 0.248" | 0.198" | 0.011" | |
| 4 AWG | AMS-DTL-23053/11-114-C | HSFEP13-004G | 0.290" | 0.226" | 0.011" | |
| 3 AWG | AMS-DTL-23053/11-115-C | HSFEP13-003G | 0.310" | 0.249" | 0.011" | |
| 2 AWG | AMS-DTL-23053/11-116-C | HSFEP13-002G | 0.365" | 0.280" | 0.012" | |
| 1 AWG | AMS-DTL-23053/11-117-C | HSFEP13-001G | 0.400" | 0.311" | 0.012" | |
| 0 AWG | AMS-DTL-23053/11-118-C | HSFEP13-000G | 0.440" | 0.349" | 0.012" | |
| 3/8" | AMS-DTL-23053/11-119-C | HSFEP13-0375 | 0.500" | 0.383" | 0.015" | |
| 7/16" | AMS-DTL-23053/11-120-C | HSFEP13-0438 | 0.580" | 0.448" | 0.02 | |
| 1/2" | AMS-DTL-23053/11-121-C | HSFEP13-050 | 0.666" | 0.510" | 0.020" | |
| 5/8" | AMS-DTL-23053/11-122-C | HSFEP13-0625 | 0.830" | 0.637" | 0.025" | |
| 3/4" | AMS-DTL-23053/11-123-C | HSFEP13-075 | 1.000" | 0.764" | 0.030" | |
| 1" | AMS-DTL-23053/11-126-C | HSFEP13-100 | 1.330" | 1.020" | 0.035" | |
| 1-1/8" | AMS-DTL-23053/11-127-C | HSFEP13-1125 | 1.500" | 1.145" | 0.035" |
Specifications/Approvals:
Military: SAE-AMS-DTL 23053/11 Class 1 (Formerly Mil-I-23053/11)
Underwriters Lab: UL 224 600V, 125°C
FEP 1.3:1 Heat Shrink Tubing
Features:
- Each piece is 4 feet long
- Operating Temperature: -67° C to 200° C (-88°F to 392°F)
- Shrink Temperature: 100° C (212°F)
- Shrink Ratio: 1.3 to 1
- Longitudinal Shrinkage: up to 15%
-
Dimensions & Technical Specs
| Mil Spec # | Size | |||
|
AMS-DTL-23053
|
Nominal
|
Before shrinking | After shrinking | |
| ID Min | ID Max | Wall Thickness | ||
| /11-101-C | 24 AWG | 0.031" | 0.027" | 0.008" |
| /11-102-C | 22 AWG | 0.036" | 0.032" | 0.008" |
| /11-103-C | 20 AWG | 0.045" | 0.039" | 0.008" |
| /11-104-C | 18 AWG | 0.060" | 0.049" | 0.008" |
| /11-105-C | 16 AWG | 0.075" | 0.061" | 0.009" |
| /11-106-C | 14 AWG | 0.092" | 0.072" | 0.009" |
| /11-107-C | 12 AWG | 0.115" | 0.089" | 0.009" |
| /11-108-C | 10 AWG | 0.141" | 0.114" | 0.010" |
| /11-109-C | 9 AWG | 0.158" | 0.124" | 0.010" |
| /11-110-C | 8 AWG | 0.180" | 0.143" | 0.010" |
| /11-111-C | 7 AWG | 0.197" | 0.158" | 0.011" |
| /11-112-C | 6 AWG | 0.225" | 0.180" | 0.011" |
| /11-113-C | 5 AWG | 0.248" | 0.198" | 0.011" |
| /11-114-C | 4 AWG | 0.290" | 0.226" | 0.011" |
| /11-115-C | 3 AWG | 0.310" | 0.249" | 0.011" |
| /11-116-C | 2 AWG | 0.365" | 0.280" | 0.012" |
| /11-117-C | 1 AWG | 0.400" | 0.311" | 0.012" |
| /11-118-C | 0 AWG | 0.440" | 0.349" | 0.012" |
| /11-119-C | 3/8" | 0.500" | 0.383" | 0.015" |
| /11-120-C | 7/16" | 0.580" | 0.448" | 0.02 |
| /11-121-C | 1/2" | 0.666" | 0.510" | 0.020" |
| /11-122-C | 5/8" | 0.830" | 0.637" | 0.025" |
| /11-123-C | 3/4" | 1.000" | 0.764" | 0.030" |
| /11-124-C | 7/8" | 1.170" | 0.891" | 0.035" |
| /11-126-C | 1" | 1.330" | 1.020" | 0.035" |
| /11-127-C | 1-1/8" | 1.500" | 1.145" | 0.035" |
