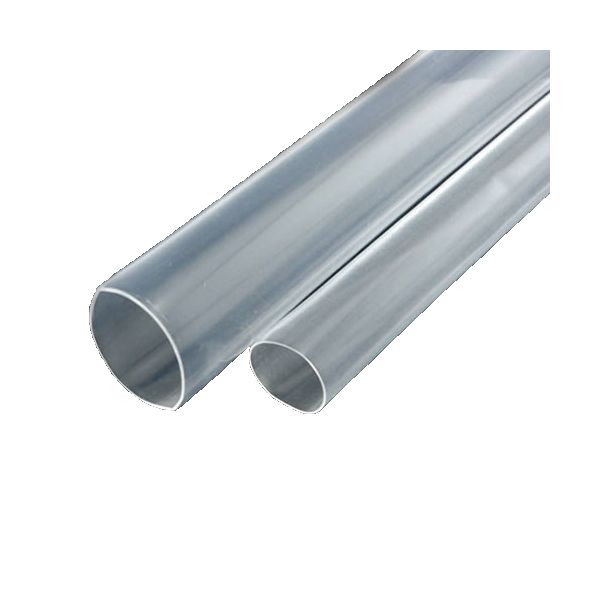

1.6:1 FEP Heat Shrink Tubing (4ft/piece)

Features

  • Operating Temperature: -67° C to 200° C (-88°F to 392°F)
  • Shrink Temperature: 100° C (212°F)
  • Shrink Ratio: 1.6 to 1
  • Longitudinal Shrinkage: up to 15%
Diameter Mil Specification #Manufacturer Part #ID Before ShrinkID After ShrinkWall After Shrink BUY (4ft Length)
3/32" AMS-DTL-23053/11-201-CHSFEP16-00940.093"0.056"0.008"
$10.62 HSFEP16-0094-CL
1/8" AMS-DTL-23053/11-202-CHSFEP16-01250.125"0.075"0.010"
$9.45 HSFEP16-0125-CL
3/16" AMS-DTL-23053/11-203-CHSFEP16-01880.188"0.115"0.010"
$9.55 HSFEP16-0188-CL
1/4" AMS-DTL-23053/11-204-CHSFEP16-0250.250"0.150"0.010"
$9.75 HSFEP16-025-CL
3/8" AMS-DTL-23053/11-205-CHSFEP16-03750.375"0.225"0.012"
$12.20 HSFEP16-0375-CL
1/2" AMS-DTL-23053/11-206-CHSFEP16-0500.500"0.300"0.015"
$25.00 HSFEP16-050-CL
3/4" AMS-DTL-23053/11-207-CHSFEP16-0750.750"0.450"0.020"
$29.25 HSFEP16-075-CL
1" AMS-DTL-23053/11-208-CHSFEP16-1001.000"0.600"0.025"
$100.00 HSFEP16-100-CL
2" AMS-DTL-23053/11-210-CHSFEP16-2002.000"1.200"0.030"
$112.00 HSFEP16-200-CL

Features

  • Operating Temperature: -67° C to 200° C (-88°F to 392°F)
  • Shrink Temperature: 100° C (212°F)
  • Shrink Ratio: 1.6 to 1
  • Longitudinal Shrinkage: up to 15%
  • Dimensions & Technical Specs

Mil Spec # Size
AMS-DTL-23053
Before shrinking After shrinking
Nominal ID Min ID Max Wall Thickness
/11-201-C 3/32" 0.093" 0.056" 0.008"
/11-202-C 1/8" 0.125" 0.075" 0.010"
/11-203-C 3/16" 0.188" 0.115" 0.010"
/11-204-C 1/4" 0.250" 0.150" 0.010"
/11-205-C 3/8" 0.375" 0.225" 0.012"
/11-206-C 1/2" 0.500" 0.300" 0.015"
/11-207-C 3/4" 0.750" 0.450" 0.020"
/11-208-C 1" 1.000" 0.600" 0.025"
/11-209-C 1 1/2" 1.500" 0.900" 0.030"
/11-210-C 2" 2.000" 1.200" 0.030"
