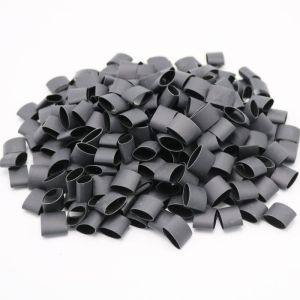

Heat Shrink Tubing Dual Wall Adhesive Lined 4:1 Ratio

4:1 Dual Wall Heat Shrink

Features:
  • 4:1 Shrink Ratio with melt adhesive inner lining (shrinks to 1/4 its original diameter)
  • Longitudinal Shrinkage: up to 15%
  • Meets requirements of AMS-DTL-23053/4 (formerly MIL-I-23053/4), Class 3
  • UL 224 VW-1 and CSA OFT recognized
  • Maximum Continuous use temperature 135°C
  • Shrink Temperature of 100°C and operating temperature of -55°C to + 135°C
  • Crosses to: Sumitomo W3B2(4X), Raychem ATUM 4X, LG GSHS-4635WT
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • * 3/16", 5/16" now available in 100 ft spools (Black and Clear).*

Rating:
100 % of 100
Diameter Part NumberMin ID before shrinkingMax ID after shrinkingMinimum Wall Thickness (Total)Minimum Wall Thickness (Adhesive) Buy
3/16" HS4A-01880.1575"0.039"0.0354"0.0197"
100 FT/SPOOL $42.00
4 FT/PIECE $1.92
5/16" HS4A-03130.315"0.079"0.0354"0.0197"
656 FT/SPOOL $435.00
100 FT/SPOOL $67.00
4 FT/PIECE $3.15
1/2" HS4A-0500.4724"0.118"0.0512"0.0236"
656 FT/SPOOL $630.00
200 FT/SPOOL $345.00
4 FT/PIECE $4.05
5/8" HS4A-06250.6299"0.157"0.063"0.03"
656 FT/SPOOL $719.89
4 FT/PIECE $5.00
1" HS4A-1000.9449"0.2362"0.0827"0.0311"
4 FT/PIECE $8.00
1.25 HS4A-1251.2598"0.315"0.096"0.0409"
4 FT/PIECE $9.88
2" HS4A-2002.0472"0.5118"0.0984"0.0409"
4 FT/PIECE $19.50
