Heat Shrink Tubing Dual Wall Adhesive Lined 4:1 Ratio Pre-Cut

Skip to the end of the images gallery

Skip to the beginning of the images gallery

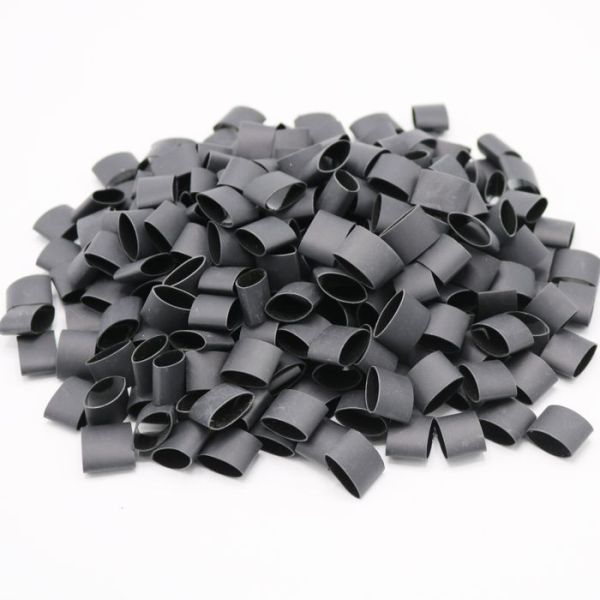

This is the same product as our 4:1 adhesive lined heat shrink, sold in precut pieces.

Note - there is a 3-4 week lead time for all cut pieces.

4:1 Shrink Ratio with melt adhesive inner lining (shrinks to 1/4 its original diameter)
Longitudinal Shrinkage: up to 15%
Meets requirements of AMS-DTL-23053/4 (formerly MIL-I-23053/4), Class 3
UL 224 VW-1 and CSA OFT recognized
Maximum Continuous use temperature 135°C
Shrink Temperature of 100°C and operating temperature of -55°C to + 135°C
Crosses to: Sumitomo W3B2(4X), Raychem ATUM 4X, LG GSHS-4635WT
Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.

Be the first to review this product

Price

Diameter	Bag	Part Number	Min ID before shrinking	Max ID after shrinking	Minimum Wall Thickness (Total)	Minimum Wall Thickness (Adhesive)
3/16"	1000 PCS/BAG	HS4AC-0188	0.1575"	0.039"	0.0354"	0.0197"
5/16"	500 PCS/BAG	HS4AC-0313	0.315"	0.079"	0.0354"	0.0197"
1/2"	500 PCS/BAG	HS4AC-050	0.4724"	0.118"	0.0512"	0.0236"
5/8"	500 PCS/BAG	HS4AC-0625	0.6299"	0.157"	0.063"	0.03"
1"	100 PCS/BAG	HS4AC-100	0.9449"	0.2362"	0.0827"	0.0311"
1-1/4"	100 PCS/BAG	HS4AC-125	1.2598"	0.315"	0.096"	0.0409"
2"	100 PCS/BAG	HS4AC-200	2.0472"	0.5118"	0.0984"	0.0409"

Datasheets

Download Datasheet here

Details

4:1 Adhesive lined (Dual Wall) Heat Shrink cut pieces. This is the same product as our 4:1 adhesive lined heat shrink, sold in precut pieces. Note - there is a 2-3 week lead time for all cut pieces.

Tech Data

Specifications/Approvals:

Military: AMS-DTL 23053/4 (Formerly Mil-I-23053/4)

Underwriters Lab: UL 224 600V, 125°C, VW-1 (Jacket only)

CSA

Crosses to: Sumitomo W3B2 (4X), Raychem ATUM 4X

Expanded			Recovered
Nominal	Inside Diameter		Inside Diameter		Minimal Wall Thickness		Minimal Wall Thickness
Size	in	mm	in	mm	in	mm	in	mm
3/16"	0.1575	4	0.039	1	0.0354	1.0	0.0197	0.43
5/16"	0.3150	8	0.079	2	0.0354	1.0	0.0197	0.5
1/2"	0.4724	12	0.118	3	0.0512	1.4	0.0236	0.56
5/8"	0.6300	16	0.157	4	0.0630	1.8	0.0300	0.76
1"	0.9449	24	0.236	6	0.0827	2.25	0.0311	0.79
1 1/4"	1.2598	32	0.315	8	0.0960	2.55	0.0409	0.93
2"	2.0472	52	0.5118	13	0.0984	2.55	0.0409	0.93

List of Sku

HS4AC	Heat Shrink Tubing Dual Wall Adhesive Lined 4:1 Ratio Pre-Cut
HS4AC-0188-025	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/4" Len, 1000Pcs
HS4AC-0188-0375	Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/8" Length, 1000Pcs
HS4AC-0188-050	3/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 Ft Length \| Black
HS4AC-0188-075	Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Length, 1000Pcs
HS4AC-0188-100	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Length, 1000Pcs
HS4AC-0188-1200	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Len, 1000Pcs
HS4AC-0188-150	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Len 1000Pcs
HS4AC-0188-200	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 1000Pcs
HS4AC-0188-250	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Len 1000Pcs
HS4AC-0188-300	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 1000Pcs
HS4AC-0188-350	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Len 1000Pcs
HS4AC-0188-400	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Length, 1000Pcs
HS4AC-0188-450	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 1/2" Len 1000Pcs
HS4AC-0188-500	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 1000Pcs
HS4AC-0188-550	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2" Len 1000Pcs
HS4AC-0188-600	3/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Len, 1000Pcs
HS4AC-0313-025	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/4" Len 500Pcs
HS4AC-0313-0375	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/8" Len, 500Pcs
HS4AC-0313-050	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Len, 500Pcs
HS4AC-0313-075	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Len, 500Pcs
HS4AC-0313-100	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Len, 500Pcs
HS4AC-0313-1200	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Len, 500Pcs
HS4AC-0313-150	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Len, 500Pcs
HS4AC-0313-200	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 500Pcs
HS4AC-0313-250	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Len, 500Pcs
HS4AC-0313-300	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 500Pcs
HS4AC-0313-350	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Len, 500Pcs
HS4AC-0313-400	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Len, 500Pcs
HS4AC-0313-450	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 1/2" Len, 500Pcs
HS4AC-0313-500	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Len, 500Pcs
HS4AC-0313-550	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2" Len, 500Pcs
HS4AC-0313-600	5/16" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Len, 500Pcs
HS4AC-050-050	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Len, 500Pcs
HS4AC-050-075	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Len, 500Pcs
HS4AC-050-100	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Len, 500Pcs
HS4AC-050-1200	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Len, 500Pcs
HS4AC-050-125	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/4" Len, 500Pcs
HS4AC-050-150	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Len, 500Pcs
HS4AC-050-175	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 3/4" Len, 500Pcs
HS4AC-050-200	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Len, 500Pcs
HS4AC-050-250	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Len, 500Pcs
HS4AC-050-300	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Len, 500Pcs
HS4AC-050-350	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Len, 500Pcs
HS4AC-050-400	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Len, 500Pcs
HS4AC-050-450	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 1/2" Len, 500Pcs
HS4AC-050-500	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 500Pcs
HS4AC-050-550	1/2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2" Len, 500Pcs
HS4AC-0625-050	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Length, 500Pcs
HS4AC-0625-075	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Length, 500Pcs
HS4AC-0625-100	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Length, 500Pcs
HS4AC-0625-1200	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Length, 500Pcs
HS4AC-0625-150	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Len, 500Pcs
HS4AC-0625-200	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 500Pcs
HS4AC-0625-250	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Len, 500Pcs
HS4AC-0625-300	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 500Pcs
HS4AC-0625-350	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Len, 500Pcs
HS4AC-0625-400	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Length, 500Pcs
HS4AC-0625-450	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 1/2" Len, 500Pcs
HS4AC-0625-500	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 500Pcs
HS4AC-0625-550	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2" Len, 500Pcs
HS4AC-0625-600	5/8" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Length, 500Pcs
HS4AC-100-050	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Length, 100Pcs
HS4AC-100-075	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Length, 100Pcs
HS4AC-100-100	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Length, 100Pcs
HS4AC-100-1200	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Length, 100Pcs
HS4AC-100-150	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1- 1/2" Len, 100Pcs
HS4AC-100-200	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 100Pcs
HS4AC-100-250	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Length, 100Pcs
HS4AC-100-300	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 100Pcs
HS4AC-100-350	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Length, 100Pcs
HS4AC-100-400	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Length, 100Pcs
HS4AC-100-450	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4-1/2" Length, 100Pcs
HS4AC-100-500	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 100Pcs
HS4AC-100-550	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2" Length, 100Pcs
HS4AC-100-600	1" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Length, 100Pcs
HS4AC-125-050	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Len, 100Pcs
HS4AC-125-075	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Len, 100Pcs
HS4AC-125-100	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Length, 100Pcs
HS4AC-125-1200	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Len, 100Pcs
HS4AC-125-150	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Len 100Pcs
HS4AC-125-200	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 100Pcs
HS4AC-125-250	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Len 100Pcs
HS4AC-125-300	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 100Pcs
HS4AC-125-350	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Len 100Pcs
HS4AC-125-400	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Length, 100Pcs
HS4AC-125-450	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4-1/2" Len 100 Pcs
HS4AC-125-500	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 100Pcs
HS4AC-125-550	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2 Len 100Pcs
HS4AC-125-600	1 1/4" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Length, 100Pcs
HS4AC-200-050	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1/2" Length, 100Pcs
HS4AC-200-075	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3/4" Length, 100Pcs
HS4AC-200-100	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1" Length, 100Pcs
HS4AC-200-1200	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 12" Length, 100Pcs
HS4AC-200-150	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 1 1/2" Length, 100Pcs
HS4AC-200-200	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2" Length, 100Pcs
HS4AC-200-250	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 2 1/2" Length, 100Pcs
HS4AC-200-300	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3" Length, 100Pcs
HS4AC-200-350	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 3 1/2" Length, 100Pcs
HS4AC-200-400	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4" Length, 100Pcs
HS4AC-200-450	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 4 1/2" Length, 100Pcs
HS4AC-200-500	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5" Length, 100Pcs
HS4AC-200-550	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 5 1/2 Length, 100Pcs
HS4AC-200-600	2" Adhesive Lined Heat Shrink Tubing 4:1 Ratio \| 6" Length, 100Pcs
