B Grade Acrylic Resin Coated Fiberglass Sleeving

BuyHeatShrink® Acrylic Coated Fiberglass Sleeving Grade B

NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed

Features:

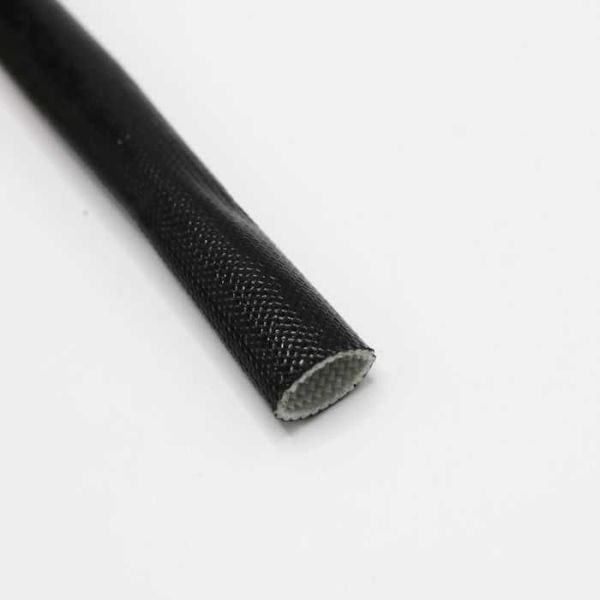

  • Tightly braided fiberglass sleeve completely coated with acrylic resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class F (-25 to 155°C)
  • Meets Mil-I-3190/3
  • CSA rated
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 6
  • Compatible with modified polyester, acrylic, epoxy, phenolic and formvar wire enamels. Designed to perform for long periods in a 155°C range without loss of any electrical or physical properties.
  • Dielectric Grade A: 7000V minimum average breakdown, 5000V minimum individual.
  • High quality equivalent to: Ben-Har Acryl, Varglas A397 & 343, Hilec 400 series (417F is Grade A), Alpha Wire AF155

Suggested Applications:

Commonly used in high voltage applications such as motors, transformers, welding appratus, coils, and lighting ballasts. Because of its versatility and 155°C termpearture rating, acrylic coated fiberglass sleeving has also found many uses in appliances such as lighting fixtures (ballasts), stoves, oven and furnace controls, relays, breaker panels, and many other commercial and industrial applications

Size Part NumberAWG SizeID Buy
24 AWG BSACRB-024G240.022,
500 FT/SPOOL $84.55
22 AWG BSACRB-022220.027,
500 FT/SPOOL $86.61
20 AWG BSACRB-020G200.034,
500 FT/SPOOL $88.40
18 AWG BSACRB-018G180.042,
500 FT/SPOOL $90.05
17 AWG BSACRB-017G170.047,
500 FT/SPOOL $95.55
16 AWG BSACRB-016G160.053,
500 FT/SPOOL $97.48
15 AWG BSACRB-015G150.059,
500 FT/SPOOL $98.30
14 AWG BSACRB-014G140.066,
500 FT/SPOOL $99.40
13 AWG BSACRB-013G130.076,
250 FT/SPOOL $56.66
12 AWG BSACRB-012G120.085,
250 FT/SPOOL $57.98
11 AWG BSACRB-011G110.085,
250 FT/SPOOL $61.96
10 AWG BSACRB-010G100.106,
250 FT/SPOOL $66.79
9 AWG BSACRB-009G90.118,
250 FT/SPOOL $68.58
8 AWG BSACRB-008G80.133,
250 FT/SPOOL $74.56
7 AWG BSACRB-007G70.148,
250 FT/SPOOL $81.53
6 AWG BSACRB-006G60.166,
250 FT/SPOOL $88.75
5 AWG BSACRB-005G50.186,
250 FT/SPOOL $94.53
4 AWG BSACRB-004G40.208,
250 FT/SPOOL $116.21
3 AWG BSACRB-003G30.234,
250 FT/SPOOL $126.39
2 AWG BSACRB-002G20.263,
250 FT/SPOOL $140.83
1 AWG BSACRB-001G10.294,
250 FT/SPOOL $66.95
3/8" BSACRB-03753/8"0.387,
100 FT/SPOOL $103.89
7/16" BSACRB-043757/6"0.45,
100 FT/SPOOL $137.04
1/2" BSACRB-0501/2"0.512,
100 FT/SPOOL $169.76
5/8" BSACRB-06255/8"0.64
100 FT/SPOOL $246.95
3/4" BSACRB-0753/4"0.786
100 FT/SPOOL $291.91
7/8" BSACRB-08757/8"0.893
100 FT/SPOOL $375.65
1" BSACRB-1001"1.018
100 FT/SPOOL $399.21
