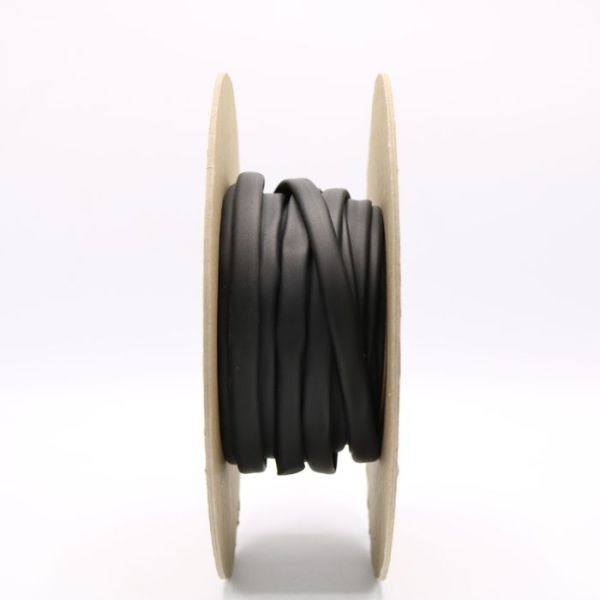

Diesel Resistant Heat Shrink Tubing 2:1 Ratio
Diesel resistant heat shrink tubing (\16) Properties:
Diameter
Mil Specification Manufacturer Part ID Before Shrink ID After Shrink Wall Thickness
Buy
1/8"
AMS-DTL-23053/16-0125-0 HSDR-0125 0.125" 0.062" 0.028"
3/16"
AMS-DTL-23053/16-0188-0 HSDR-0188 0.188" 0.093" 0.030"
1/4"
AMS-DTL-23053/16-001-0 HSDR-025 0.250" 0.125" 0.035"
3/8"
AMS-DTL-23053/16-002-0 HSDR-0375 0.375" 0.187" 0.040"
1/2"
AMS-DTL-23053/16-003-0 HSDR-050 0.500" 0.250" 0.048"
3/4"
AMS-DTL-23053/16-004-0 HSDR-075 0.750" 0.375" 0.057"
1"
AMS-DTL-23053/16-005-0 HSDR-100 1.000" 0.500" 0.070"
1-1/2"
AMS-DTL-23053/16-006-0 HSDR-150 1.500" 0.750" 0.095"
2"
AMS-DTL-23053/16-007-0 HSDR-200 2.000" 1.000" 0.110"
Property
Test Method
Values
Tensile Strength
ISO 37
14 MPa (min)
Ultimate Elongation
ISO 37
350%
Heat Shock
ASTM D2671 (4hrs at 200°C)
no dripping
Specifications/Approvals: Military: SAE-AMS-DTL 23053/16 (Formerly Mil-I-23053/16)
Crosses to: Sumitomo R-120, Raychem DR-25, Alpha FIT-601, 3M PSTH, Canusa DERAY V25, LG DRET
Diesel resistant heat shrink tubing (\16) Properties:
Operating Temperature: -70° C to 150° C
Shrink Temperature: 175° C
Shrink Ratio: 2 to 1
Longitudinal Shrinkage: up to 10%
Dimensions & Technical Specs
Mil Spec #
Size
AMS-DTL-23053
Before shrinking
After shrinking
ID Nominal
ID Min
ID Max
Wall Thickness
/16-0125"
1/8"
0.125"
0.062"
0.028"
/16-0188"
3/16"
0.188"
0.093"
0.030"
/16-001-0
1/4"
0.250"
0.125"
0.035"
/16-002-0
3/8"
0.375"
0.187"
0.040"
/16-003-0
1/2"
0.500"
0.250"
0.048"
/16-004-0
3/4"
0.750"
0.375"
0.057"
/16-005-0
1"
1.000"
0.500"
0.070"
/16-006-0
1 1/2"
1.500"
0.750"
0.095"
N/A
1 3/4"
1.750"
0.875"
0.107"
/16-007-0
2 "
2.000"
1.000"
0.110"
/16-008-0
3"
3.000"
1.500"
0.125"
/16-009-0
4"
4.000"
2.000"
0.140"
HSDR
Diesel Resistant Heat Shrink Tubing 2:1 Ratio
HSDR-0125
1/8" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 165 Ft Spool
HSDR-0188
3/16" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 165 Ft Spool
HSDR-025-100FT
1/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 100 Ft Spool
HSDR-025-15FT
1/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 15 Ft Spool
HSDR-025-165FT
1/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 165 Ft Spool
HSDR-025-65FT
1/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 65 Ft Spool
HSDR-0375-100FT
3/8" Diesel Resistant Heat Shrink Tubing 2:1 Ratio| 100 Ft Spool
HSDR-0375-165FT
3/8" Diesel Resistant Heat Shrink Tubing 2:1 Ratio| 165 Ft Spool
HSDR-0375-65FT
3/8" Diesel Resistant Heat Shrink Tubing 2:1 Ratio| 65 Ft Spool
HSDR-050-100FT
1/2" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 100 Ft Spool
HSDR-050-50FT
1/2" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 50 Ft Spool
HSDR-075-100FT
3/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 100 Ft Spool
HSDR-075-50FT
3/4" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 50 Ft Spool
HSDR-100-100FT
1" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 100 Ft Spool
HSDR-100-50FT
Heat Shrink Tubing DR-25 Diesel Resistant 2:1 Ratio
HSDR-150-1FT
1 1/2 Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 1 Ft Spool
HSDR-150-50FT
1 1/2 Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 50 Ft Spool
HSDR-200-1FT
2" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 1 Ft Spool
HSDR-200-50FT
2" Diesel Resistant Heat Shrink Tubing 2:1 Ratio | 50 Ft Spool
