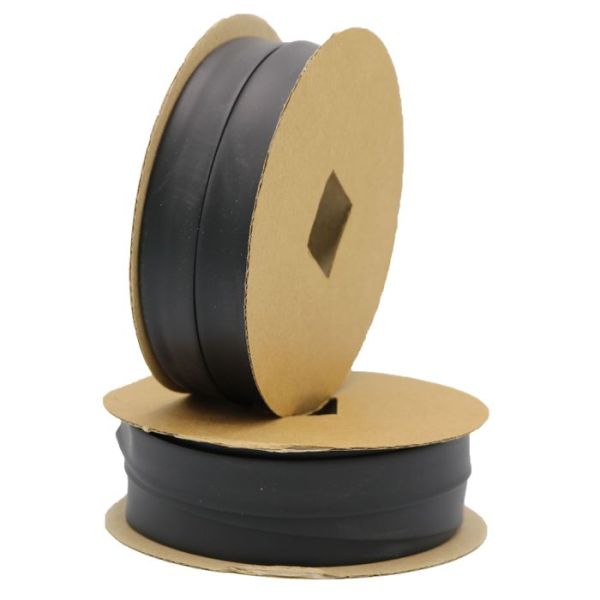

Neoprene Heat Shrink Tubing

Neoprene Heat Shrink Tubing

Features:

  • Operating Temperature: -75° C to 120° C
  • Shrink Temperature: 135° C
  • Shrink Ratio: 2 to 1
  • Longitudinal Shrinkage: up to 15%


    Diameter Feet BUY
    1/8" 165 FT/SPOOL
    $130.00 HSNEO-0125-BK
    3/16" 165 FT/SPOOL
    $136.00 HSNEO-0188-BK
    1/4" 165 FT/SPOOL
    $145.00 HSNEO-025-BK
    3/8" 100 FT/SPOOL
    $97.00 HSNEO-0375-BK
    1/2" 100 FT/SPOOL
    $108.00 HSNEO-050-BK
    5/8" 100 FT/SPOOL
    $138.00 HSNEO-0625-BK
    3/4" 100 FT/SPOOL
    $149.00 HSNEO-075-BK
    7/8" 100 FT/SPOOL
    $198.00 HSNEO-0875-BK
    1" 100 FT/SPOOL
    $208.00 HSNEO-100-BK
    1-1/4" 50 FT/SPOOL
    $294.00 HSNEO-125-BK
    1-1/2" 50 FT/SPOOL
    $190.00 HSNEO-150-BK
    1-3/4" 50 FT/SPOOL
    $343.00 HSNEO-175-BK
    2" 50 FT/SPOOL
    $394.00 HSNEO-200-BK
    3" 50 FT/SPOOL
    $550.00 HSNEO-300-BK

    Neoprene Heat Shrink Tubing

    Neoprene is known for its good fluid and solvent resistance, abrasion resistance, and outstanding low temperature flexibility. Neoprene heat shrink tubing is used for insulation, strain relief and abrasion protection on cable harnesses and wire bundles in the military and aerospace industries.

    Neoprene Heat Shrink Tubing

    Features:

    • Operating Temperature: -75° C to 120° C
    • Shrink Temperature: 135° C
    • Shrink Ratio: 2 to 1
    • Longitudinal Shrinkage: up to 15%


      • Dimensions & Technical Specs

      Mil Spec # Size
      AMS-DTL-23053/1-
      Before shrinking After shrinking
      ID Nominal ID Min ID Max Wall Thickness
      N/A 1/8" 0.125" 0.062" 0.028"
      N/A 3/16" 0.188" 0.093" 0.030"
      101 & 201-0 1/4" 0.250" 0.143" 0.035"
      102 & 202-0 3/8" 0.375" 0.211" 0.040"
      103 & 203-0 1/2" 0.500" 0.286" 0.048"
      104 & 204-0 5/8" 0.625" 0.357" 0.052"
      105 & 205-0 3/4" 0.750" 0.428" 0.057"
      106 & 206-0 7/8" 0.875" 0.500" 0.065"
      107 & 207-0 1" 1.000" 0.570" 0.070"
      108 & 208-0 1 1/4" 1.250" 0.714" 0.087"
      109 & 209-0
      1 1/2"
      1.500"
      0.857"
      0.095"
      110 & 210-0 1 3/4" 1.750" 1.000" 0.107"
      111 & 211-0 2 " 2.000" 1.140" 0.110"
      112 & 212-0 3 " 3.000" 1.710" 0.125"
      113 & 213-0 4 " 4.000" 2.280" 0.140"
