2:1 Semi-Rigid Polyolefin heat shrink

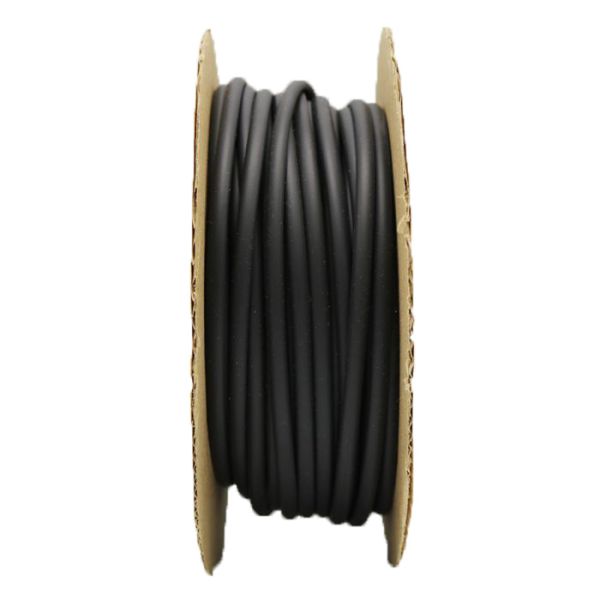

BuyHeatShrink® 2:1 Semi-Rigid Polyolefin Heat Shrink

The most popular Heat shrink tubing for electrical insulation and bonding cables in a wide range of colors and shrink sizes.  2 to 1 Shrink tubing means the material shrinks to half of the original diameter when heated using an oven or hot air gun.
Features:
  • 2:1 Shrink Ratio (shrinks to 50% of its original diameter)
  • Meets requirements of SAE AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), and 3
  • UL 224 VW-1 and CSA OFT recognized
  • Maximum Continuous use temperature 135°C
  • Colored Heat Shrink Tubing: We carry 12 standard heat shrink colors: Black, Clear, Red, White, Blue, Yellow, Brown, Gray, Orange, Green, Violet and Yellow/Green
  • Shrink Temperature of 120°C and operating temperature of -55°C to + 135°C
  • Crosses to : Sumitomo B2, Raychem RNF-100, Alpha FIT-221, 3M FP301 heat shrink, Canusa CPX-100, LG GSHS-1635F
  • Typical applications include: Insulation, Wire Identification, Wire Bundling, Mechanical Protection, Color Coding, Lightweight Harnessing, Physical/Electrical Protection of Components, Strain Relief, and Solder Insulation.
  • RoHS and RoHS2 compliant
  • Range of rolls and sizes, some sizes are sold by the foot other sizes range from 25 foot rolls to 500 foot rolls, as well as optional 4 foot pieces.
  • Other 2 to 1 Polyolefin options including Pre cut Heat ShrinkLow Temperature Shrink Tubing and Shiny Heat Shrink are also available in various diameters and lengths.
Diameter Mil Specification #Manufacturer Part #ID Before Shrink ID After Shrink Buy
3/64"
500 FT/SPOOL$114.40
4 FT/PIECE$0.73
1/16"
500 FT/SPOOL$117.70
4 FT/PIECE$0.76
3/32"
500 FT/SPOOL$129.80
4 FT/PIECE$0.83
1/8"
500 FT/SPOOL$138.60
4 FT/PIECE$0.89
3/16"
250 FT/SPOOL$82.50
4 FT/PIECE$1.06
1/4"
250 FT/SPOOL$103.95
4 FT/PIECE$1.33
3/8"
100 FT/SPOOL$45.76
4 FT/PIECE$1.46
1/2"
100 FT/SPOOL$51.48
4 FT/PIECE$1.65
3/4"
100 FT/SPOOL$71.50
4 FT/PIECE$2.29
1"
100 FT/SPOOL$105.82
4 FT/PIECE$3.39
Products you might like!
Hot Melt Tape For Heat Shrinkable Tubing
Hot Melt Tape For Heat Shrinkable Tubing
$15.00

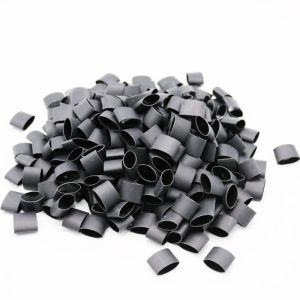

2:1 Polyolefin Heat Shrink Tubing | Pre-Cut Pieces
