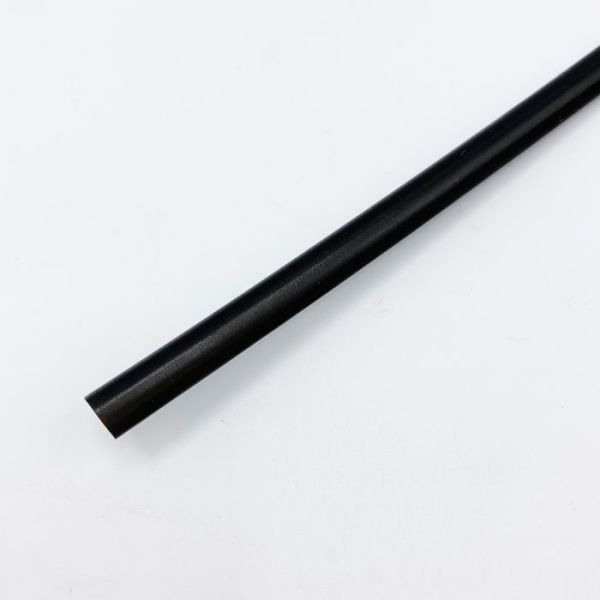

Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Continuous operating temperature 347°F (175°C)
Superior chemical and aging resistance
UV and gamma ray stable
Flame rating: UL94V0 and VW-1
Plenum rated material
Only Teflon (PTFE) has a lower coefficient of friction
Flexible PVDF has AMS-DTL-23053/18 Class 2 (formerly MIL-I-23053) approval
Semi-Rigid PVDF has AMS-DTL-23053/8 (formerly MIL-I-23053) approval

Be the first to review this product

Price

Diameter	Mil Spec #	Manufacturer Part#	Before Shrink	After Shrink	Buy
3/64"	AMS-DTL-23053/8-001	HSK-0047	0.047"	0.023"	984 FT/SPOOL $375.00 4 FT/PIECE $1.70
1/16"	AMS-DTL-23053/8-002-C	HSK-0063	0.063	0.031	984 FT/SPOOL $432.96 4 FT/PIECE $1.85
3/32"	AMS-DTL-23053/8-003-C	HSK-0094	0.094	0.046	500 FT/SPOOL $220.00 4 FT/PIECE $1.95 $0.03
1/8"	AMS-DTL-23053/8-004-C	HSK-0125	0.125	0.062	500 FT/SPOOL $265.00 4 FT/PIECE $2.35
3/16"	AMS-DTL-23053/8-005-C	HSK-0188	0.188	0.093	500 FT/SPOOL $380.00 4 FT/PIECE $3.20
1/4"	AMS-DTL-23053/8-006-C	HSK-025	0.251	0.125	250 FT/SPOOL $225.00 4 FT/PIECE $3.95
3/8"	AMS-DTL-23053/8-007-C	HSK-0375	0.377	0.187	4 FT/PIECE $5.05
1/2"	AMS-DTL-23053/8-008-C	HSK-050	0.503	0.25	200 FT/SPOOL $443.00 4 FT/PIECE $7.25
3/4"	AMS-DTL-23053/8-009-C	HSK-075	0.759	0.375	4 FT/PIECE $12.95
1"	AMS-DTL-23053/8-010-C	HSK-100	1	0.5	4 FT/PIECE $25.75
1.5"	AMS-DTL-23053/8-011-C	HSK-150	1.5	0.75	4 FT/PIECE $92.00

Datasheets

Download Datasheet here

Details

Kynar Heat Shrinkable Tubing

PolyVinylidene Fluoride (PVDF) is a chemical compound used in high temperature applications. It also has outstanding chemical resistance and its cut-through resistance is superior to that of almost all heat shrink materials. Maximum continuous operating temperatures can ranged from 150-175°C

PVDF Heat shrink tubing is available in two types: flexible PVDF (150°C), and a semi-rigid material sold under the tradename Kynar (175°C). We carry both types, which conform to either AMS-DTL-23053/18 Class 2 (flexible PVDF) or AMS-DTL-23053/8 (Kynar)

Features

Continuous operating temperature 347°F (175°C)
Superior chemical and aging resistance
UV and gamma ray stable
Flame rating: UL94V0 and VW-1
Plenum rated material
Only Teflon (PTFE) has a lower coefficient of friction
Flexible PVDF has AMS-DTL-23053/18 Class 2 (formerly MIL-I-23053) approval
Semi-Rigid PVDF has AMS-DTL-23053/8 (formerly MIL-I-23053) approval

Tech Data

Diameter	Mil Spec #	Manufacturer Part#	Before Shrink	After Shrink
3/64"	AMS-DTL-23053/8-001	HSK-0047	0.047"	0.023"
1/16"	AMS-DTL-23053/8-002-C	HSK-0063	0.063	0.031
3/32"	AMS-DTL-23053/8-003-C	HSK-0094	0.094	0.046
1/8"	AMS-DTL-23053/8-004-C	HSK-0125	0.125	0.062
3/16"	AMS-DTL-23053/8-005-C	HSK-0188	0.188	0.093
1/4"	AMS-DTL-23053/8-006-C	HSK-025	0.251	0.125
3/8"	AMS-DTL-23053/8-007-C	HSK-0375	0.377	0.187
1/2"	AMS-DTL-23053/8-008-C	HSK-050	0.503	0.25
3/4"	AMS-DTL-23053/8-009-C	HSK-075	0.759	0.375
1"	AMS-DTL-23053/8-010-C	HSK-100	1	0.5
1.5"	AMS-DTL-23053/8-011-C	HSK-150	1.5	0.75

List of Sku

HSK-0047	3/64" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-0047-984FT	3/64" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing\| 984 Ft Spool
HSK-0063	1/16" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing\| 4 Ft Length
HSK-0063-984FT	1/16" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing\| 984 Ft Spool
HSK-0094	3/32" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-0094-0375	3/32" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 3/8 inch Length \| Clear
HSK-0094-500FT	3/32" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 500 Ft Spool
HSK-0125	1/8" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-0125-500FT	1/8" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 500 Ft Spool
HSK-0188	3/16" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-0188-500FT	3/16" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 500 Ft Spool
HSK-025	1/4" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-025-250FT	1/4" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 250 Ft Spool
HSK-0375	3/8" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-0375-250FT	3/8" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 250 Ft Spool
HSK-050	1/2" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-050-250FT	1/2" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 250 Ft Spool
HSK-075	3/4" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-075-100FT	3/4" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 100 Ft Spool
HSK-100	1" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 4 Ft Length
HSK-100-200FT	1" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing \| 200 Ft Spool
HSK-150	1.5" Kynar PVDF Semi-Rigid 2:1 Heat Shrink Tubing\| 4 Ft Length
