C Grade Vinyl Coated Fiberglass Braided Cable Sleeving

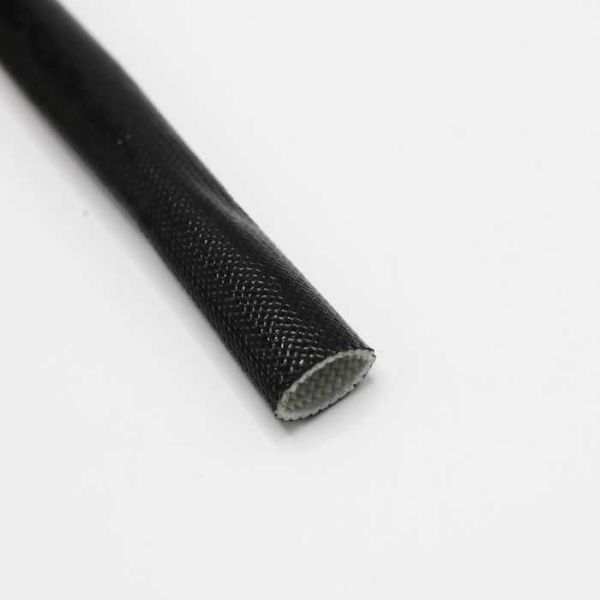

Vinyl Coated Fiberglass Sleeving

NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed

Features:
  • Tightly braided fiberglass sleeve completely coated with Polyvinyl Chloride resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class B (-20 to 130°C)
  • Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TF-1, Type 3
  • Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
  • Dielectric Grade C: 2500V minimum average breakdown, 1500V minimum individual.
  • High quality equivalent to: Ben-Har Vinyl, Varfil sleeving, Hilec 310B series, Alpha Wire PIF-130

High-temperature vinyl coated braided fiberglass sleeves are commonly used in high voltage applications where flame resistance is necessary. Terminal insulation applications include radio, television, and commercial electronics. These instances have operating temperatures below 130℃. Also, due to its flame retardancy, vinyl coating is ideal for applications involving soldered splices and terminations.

Size Feet Part NumberID Buy
24 AWG 500 FT/SPOOL BSVC-024G0.022"
$83.73 BSVC-024G
22 AWG 500 FT/SPOOL BSVC-022G0.027"
$84.83 BSVC-022G
20 AWG 500 FT/SPOOL BSVC-020G0.034"
$88.13 BSVC-020G
18 AWG 500 FT/SPOOL BSVC-018G0.042"
$88.40 BSVC-018G
17 AWG 500 FT/SPOOL BSVC-017G0.047"
$88.95 BSVC-017G
16 AWG 500 FT/SPOOL BSVC-016G0.053"
$92.11 BSVC-016G
15 AWG 500 FT/SPOOL BSVC-015G0.059"
$92.39 BSVC-015G
14 AWG 500 FT/SPOOL BSVC-014G0.066"
$94.18 BSVC-014G
13 AWG 250 FT/SPOOL BSVC-013G0.076"
$54.74 BSVC-013G
12 AWG 250 FT/SPOOL BSVC-012G0.085"
$55.36 BSVC-012G
11 AWG 250 FT/SPOOL BSVC-011G0.095"
$57.76 BSVC-011G
10 AWG 250 FT/SPOOL BSVC-010G0.106"
$59.49 BSVC-010G
9 AWG 250 FT/SPOOL BSVC-009G0.118"
$62.99 BSVC-009G
8 AWG 250 FT/SPOOL BSVC-008G0.133"
$67.75 BSVC-008G
7 AWG 250 FT/SPOOL BSVC-007G0.148"
$72.98 BSVC-007G
6 AWG 250 FT/SPOOL BSVC-006G0.166"
$82.90 BSVC-006G
5 AWG 250 FT/SPOOL BSVC-005G0.186"
$87.24 BSVC-005G
4 AWG 250 FT/SPOOL BSVC-004G0.208"
$97.69 BSVC-004G
3 AWG 250 FT/SPOOL BSVC-003G0.234"
$109.28 BSVC-003G
2 AWG 250 FT/SPOOL BSVC-002G0.263"
$123.71 BSVC-002G
0 AWG 100 FT/SPOOL BSVC-000G0.33"
$66.98 BSVC-000G
3/8" 100 FT/SPOOL BSVC-03750.387"
$96.38 BSVC-0375
7/16" 100 FT/SPOOL BSVC-043750.45"
$127.11 BSVC-04375
1/2" 100 FT/SPOOL BSVC-0500.512"
$165.64 BSVC-050
5/8" 100 FT/SPOOL BSVC-06250.64"
$195.23 BSVC-0625
3/4" 100 FT/SPOOL BSVC-0750.786"
$233.31 BSVC-075
7/8" 100 FT/SPOOL BSVC-08750.893"
$97.50 BSVC-0875
1" 100 FT/SPOOL BSVC-1001.018"
$83.75 BSVC-100
