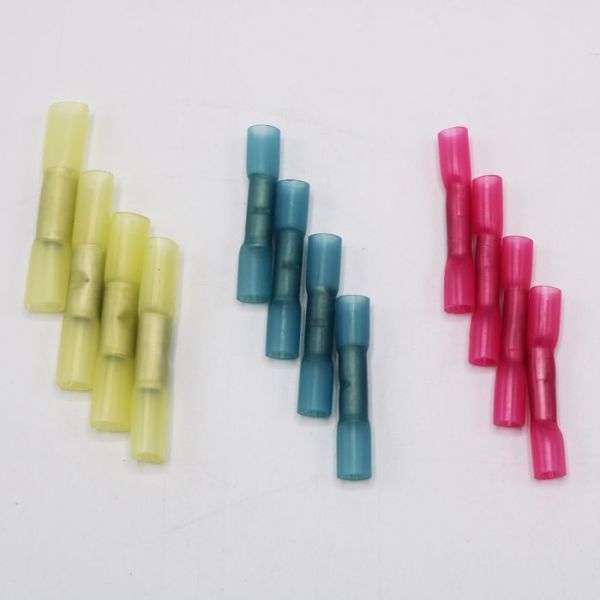

The heat shrink butt splice is an irradiated thermally stabilized heat shrinkable dual wall sleeving composed of an outer tube coated on the inner surface with a meltable polyamide adhesive.
Simply put: it's a piece of dual wall heat shrink with a crimp splice inside of it. You crimp the two pieces of wire together, and then heat the splice with a hot air gun so that the outer sleeve shrinks and the adhesive melts and flows to give a fully sealed water tight joint.
The butt splice is resistant to water, spray, oil, saltwater and most hazardous chemicals.
Wire Range | Wire size range (AWG) | Current Rating | Color | Length | Term I.D. | Insulator Bell I.D. | Material Thickness | Buy |
---|---|---|---|---|---|---|---|---|
8 AWG | 8 | - | Red | 1.88 | 0.177 | 0.33 | 0.050 | |
12-10 AWG | 12-10 | 49 | Yellow | 1.70 | 0.142 | 0.27 | 0.038 | |
16-14 AWG | 16-14 | 27 | Blue | 1.50 | 0.097 | 0.22 | 0.032 | |
22-18 AWG | 22-18 | 19 | Red | 1.50 | 0.072 | 0.18 | 0.030 | |
26-22 AWG | 26-22 | 49 | Yellow |
