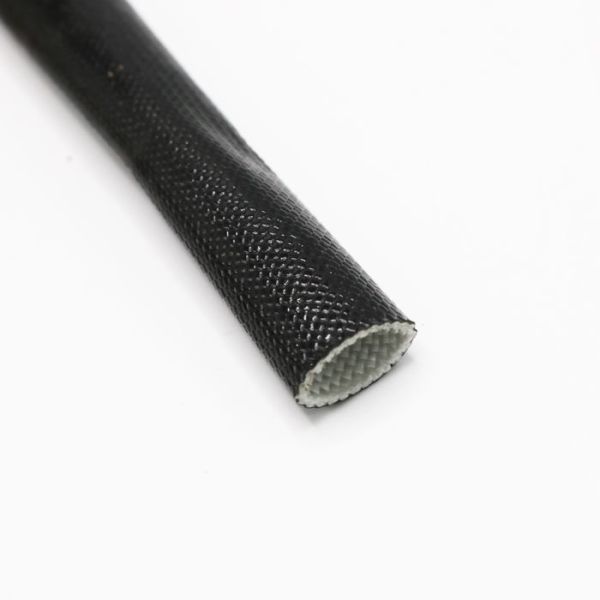

BuyHeatShrink® Silicone Coated Fiberglass Sleeving GRADE B

NOTE - THERE IS A 6 TO 8 WEEK LEAD TIME
These are special order materials, with a factory lead time. Materials are not returnable. Orders are not cancellable 1 week after the order is placed

Features:
  • Tightly braided fiberglass sleeve is completely coated with silicone resin to provide superior electrical and thermal protection.
  • Thermal Characteristics - UL/NEMA Thermal Class H (-70 to 200°C)
  • Flame Resistance - Passes UL 1441 (VW-1). Self-Extinguishing. NEMA TF-2 flame retardant
  • Available in NEMA sizes #24 (AWG) to 1". NEMA TS-1, Type 5
  • Excellent chemical resistance to: Acids, weak alkalis, esters, fungus and corona treatment
  • Dielectric Grade B: 4000V minimum average breakdown, 2500V minimum individual.
  • The coating maintains its electrical integrity—even under severe fire conditions—by forming a non-conductive ash
  • High quality equivalent to: Ben-Har 1151-FRC, Hilec 547R, Hilec Vol-Sil Grade C, Suflex Acrylflex F
Silicone coated fiberglass braided wire protection sleeve is used for insulation of leads and connections in electrical and electronic components, including transformers, coils, relays, solenoids, etc. where temperatures range from -70℃ through +200℃.
Silicone rubber coated glass sleeving is the only flexible insulating material which remains useful for continuous service in ambient temperatures from -70℃ through +200℃, as the coating maintains its electrical integrity even under severe fire conditions by forming non-conductive ash.
Size Feet Part NumberID Buy
24 AWG 500 FT/SPOOL BSSILB-024G0.022"
$221.63 BSSILB-024G
22 AWG 500 FT/SPOOL BSSILB-022G0.027"
$222.18 BSSILB-022G
20 AWG 500 FT/SPOOL BSSILB-020G0.034"
$226.16 BSSILB-020G
18 AWG 500 FT/SPOOL BSSILB-018G0.042"
$236.20 BSSILB-018G
17 AWG 500 FT/SPOOL BSSILB-017G0.047"
$243.08 BSSILB-017G
16 AWG 500 FT/SPOOL BSSILB-016G0.053"
$246.65 BSSILB-016G
15 AWG 500 FT/SPOOL BSSILB-015G0.059"
$248.71 BSSILB-015G
14 AWG 500 FT/SPOOL BSSILB-014G0.066"
$260.95 BSSILB-014G
13 AWG 500 FT/SPOOL BSSILB-013G0.076"
$136.23 BSSILB-013G
12 AWG 250 FT/SPOOL BSSILB-012G0.085"
$142.83 BSSILB-012G
11 AWG 250 FT/SPOOL BSSILB-011G0.095"
$148.88 BSSILB-011G
10 AWG 250 FT/SPOOL BSSILB-010G0.106"
$164.23 BSSILB-010G
9 AWG 250 FT/SPOOL BSSILB-009G0.118"
$171.38 BSSILB-009G
8 AWG 250 FT/SPOOL BSSILB-008G0.133"
$182.71 BSSILB-008G
7 AWG 250 FT/SPOOL BSSILB-007G0.148"
$193.03 BSSILB-007G
6 AWG 250 FT/SPOOL BSSILB-006G0.166"
$205.26 BSSILB-006G
5 AWG 250 FT/SPOOL BSSILB-005G0.186"
$222.73 BSSILB-005G
4 AWG 250 FT/SPOOL BSSILB-004G0.208"
$246.59 BSSILB-004G
3 AWG 250 FT/SPOOL BSSILB-003G0.234"
$274.23 BSSILB-003G
2 AWG 250 FT/SPOOL BSSILB-002G0.263"
$344.74 BSSILB-002G
1 AWG 100 FT/SPOOL BSSILB-001G0.294"
$149.08 BSSILB-001G
0 AWG 100 FT/SPOOL BSSILB-000G0.33"
$181.56 BSSILB-000G
3/8" 100 FT/SPOOL BSSILB-03750.387"
$247.86 BSSILB-0375
7/16" 100 FT/SPOOL BSSILB-04650.387"
$341.59 BSSILB-0438
1/2" 100 FT/SPOOL BSSILB-0500.512"
$390.15 BSSILB-050
5/8" 100 FT/SPOOL BSSILB-06250.64"
$412.80 BSSILB-0625
3/4" 100 FT/SPOOL BSSILB-0750.786"
$486.64 BSSILB-075
7/8" 100 FT/SPOOL BSSILB-08750.893"
$598.68 BSSILB-0875
1" 100 FT/SPOOL BSSILB-1001.018"
$731.23 BSSILB-100
